254 Agilent E5505A User’s Guide
10
FM Discriminator Measurement Examples
example is negligible.) The test set Signal and Reference inputs requires +15
ICBM.
Defining the measurement
1
From the File menu, choose Open.
2
If necessary, choose the drive or directory where the file you want is stored.
3
In the File Name box, choose “vco_dss.pnm.” See Figure 182.
.
4
Click the Open button.

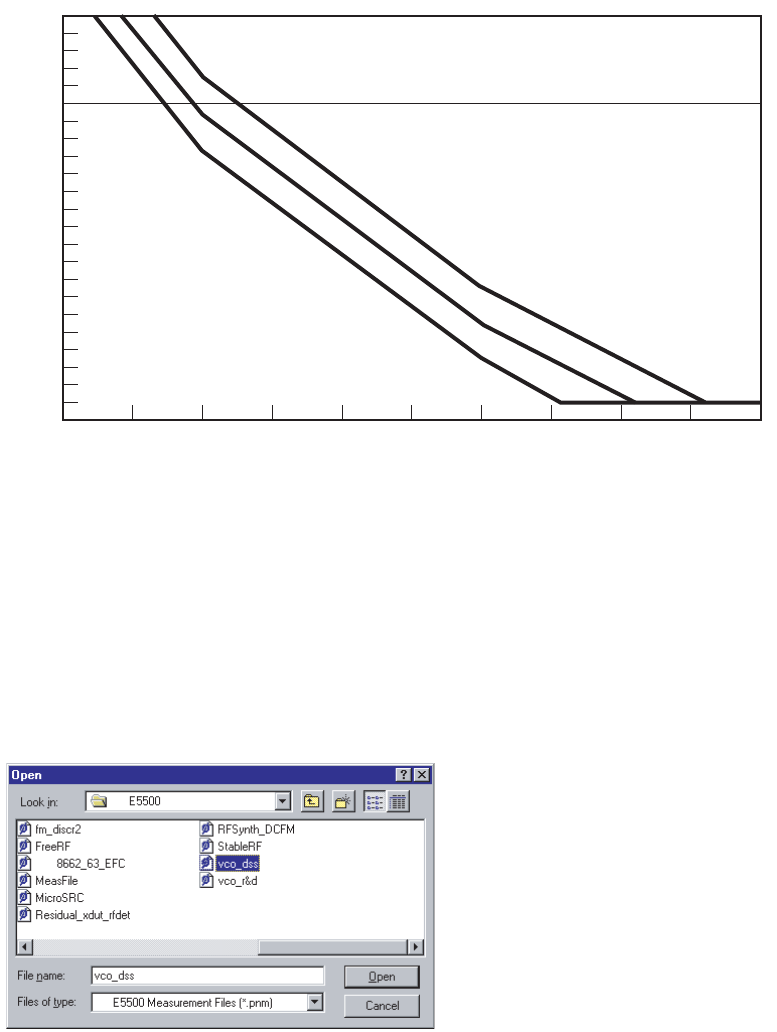

Figure 181 Discriminator noise floor as a function of delay time
10M 100M100101.1.01 1M100K10K1K
-180
0
20
40
-20
-40
-60
-80
-100
-120
-140
-160
E5505a_disc_noise_floor
01 Mar 04 rev 1
10nS
100nS
1μS
L( f ) = -[dBc/Hz] vs. f [Hz]
Figure 182 Select the parameters definition file
