Residual Measurement Examples
8
Agilent E5505A User’s Guide 243

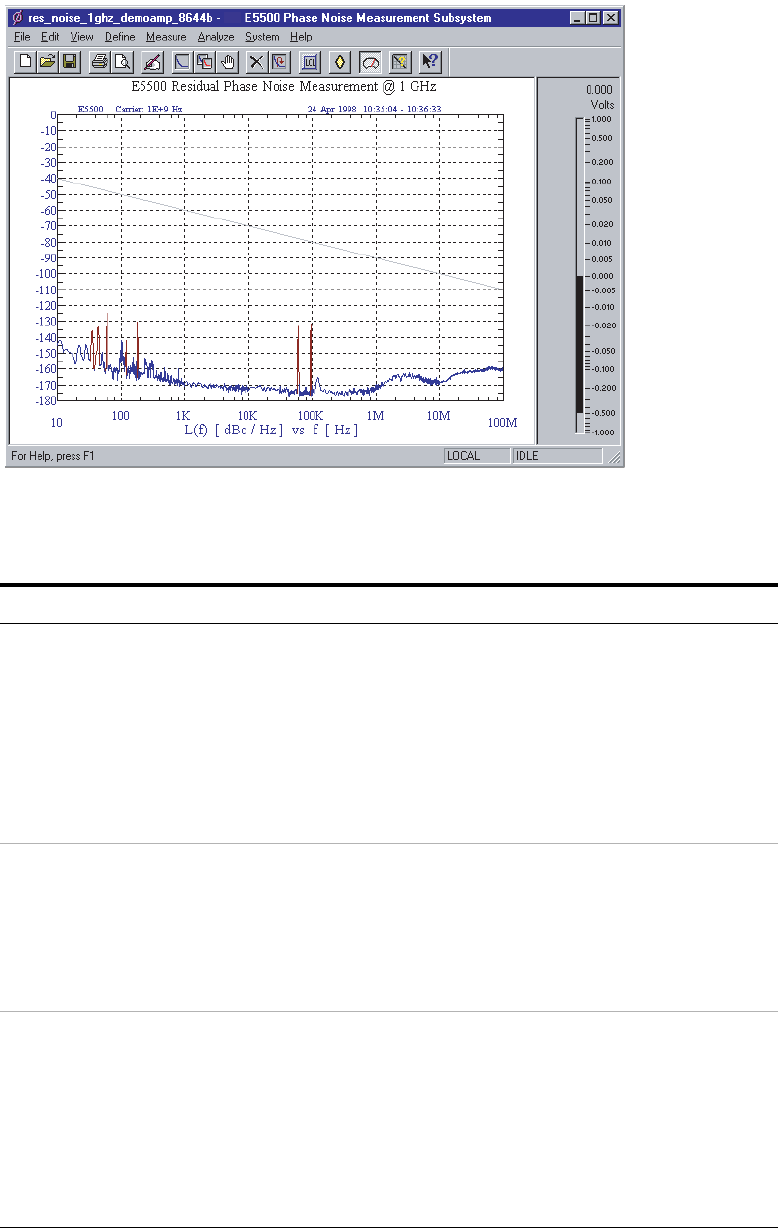

Figure 177 Typical phase noise curve for a residual measurement
Table 38 Parameter data for the amplifier measurement example
Step Parameters Data
1 Type and Range Tab
Measurement Type
•
Start Frequency
•
Stop Frequency
•
Minimum Number of Averages
FFT Quality
Swept Quality
•
Residual Phase Noise (without using a phase
locked loop)
•
10 Hz
•
100 E + 6 Hz
•
4
•
Normal
•
Fast
2Sources Tab
Carrier Source
•
Frequency
•
Power
Detector Input
•
Frequency
•
1 E + 9 Hz
•
10 dBm
•
1 E + 9 Hz
3Cal Tab
•
Phase Detector Constant
•
Current Phase Detector
Constant
•
Know Spur Parameters
•
Amplitude
•
Offset Frequency
•
Derive detector constant from measured ± DC peak
•
410.8 E-3
•
0 dBc
•
0 Hz
