240 Agilent E5505A User’s Guide

Residual Measurement Examples

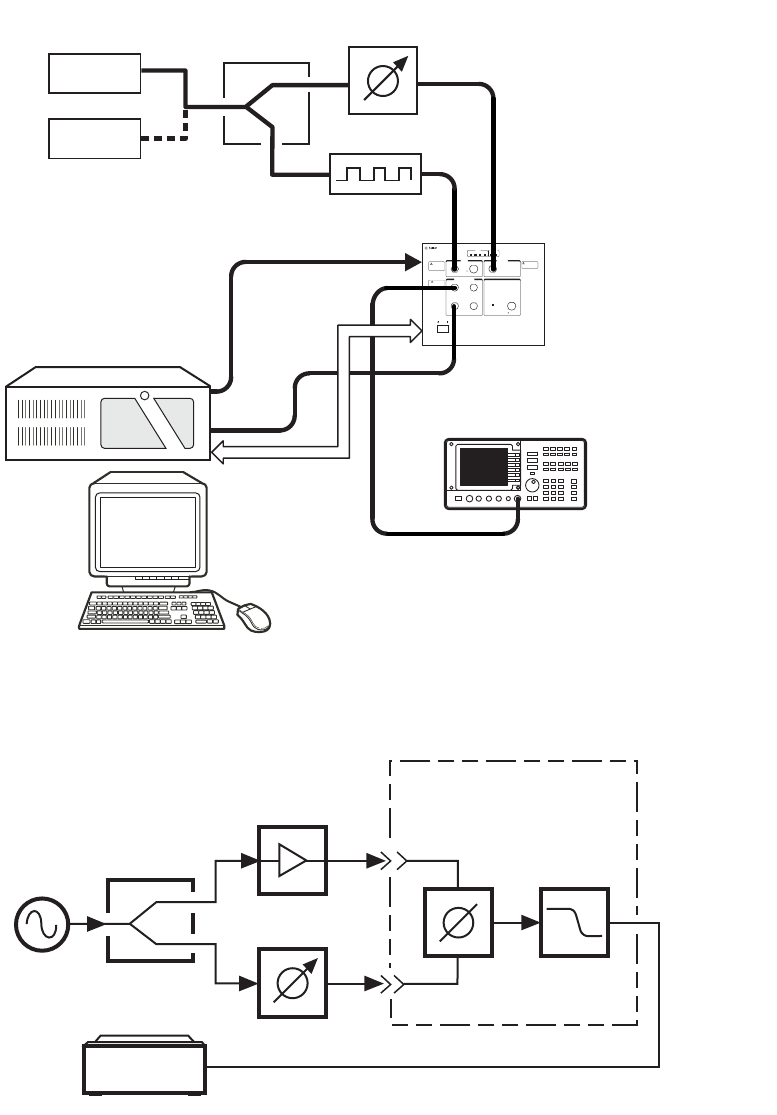

Figure 173 Residual connect diagram example

Figure 174 Connection to optional oscilloscope for determining voltage peaks

e5505a_user_residual_connect_ex

25 Jun 04 rev 3

23dBm

50kHz-1600 MHz

MAXIMUM POWER

20mA MAX

TUNE VOLTAGE

OUT OF LOCK

100kHz

ANALYZERANALYZER

RF ANALYZER

PHASE DET OUTPUT

MONITOR

15dBm MIN

50kHz-1600 MHz

REF INPUT

ERRACT

STATUS

SRQTLKLSN

GPIB

RMT

NOISE

0.01Hz-100 MHz

1V Pk

50kHz-1600 MHz

INPUT

SIGNAL

POSSIBLE

SIGNAL INPUT

100MHz

23dBm

50kHz-1600 MHz

MAXIMUM POWER

30dBm

OUTPUT POWER

POWER

N5500A

Test Set

Spectrum analyzer

Digitizer

input

Digitizer

output

GPIB

Display

Calibration

source

DUT

Power

splitter

Phase

shifter

Delay line

Test set

To test set rear panel

CHIRP input

Power

splitter

Phase

detector

Source

E5505a_user_connect_osc_vol_peak

16 Mar 04 rev 3

DUT

Test set

Signal

input

Ref input

Optional line

stretcher

Low-pass

filter

Oscilloscope

Connect scope to monitor port
