Residual Measurement Examples
8
Agilent E5505A User’s Guide 237
2
When the Do you want to perform a New Calibration and Measurement?
prompt appears, click Yes.
3
When the Connect Diagram dialog box appears, click on the hardware
down arrow and select your hardware configuration from the pull-down
list. Refer to Figure 172.
4
Connect your DUT and reference sources to the test set at this time.
Confirm your connections as shown in the appropriate connect diagram.
• The input attenuator (Option 001 only) is now correctly configured
based on your measurement definition.

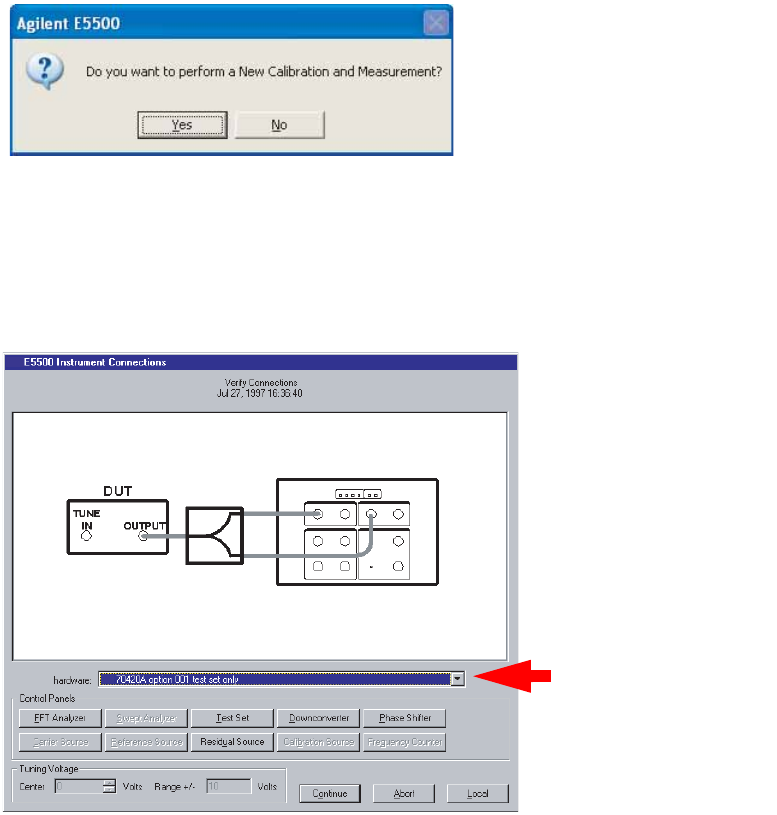

Figure 171 Confirm new measurement
Figure 172 Setup diagram for the 8349A amplifier measurement example
