Residual Measurement Examples
8
Agilent E5505A User’s Guide 233
9
Choose the Cal tab from the Define Measurement window.
10
Select Derive detector constant from measured ± DC peak voltage as the
calibration method. See Figure 166.
11
Choose the Block Diagram tab from the Define Measurement window. Refer
to Figure 167.
a
From the Phase Shifter pull-down, select Manual.
b
From the Phase Detector pull-down, select Automatic Detector
Selection.

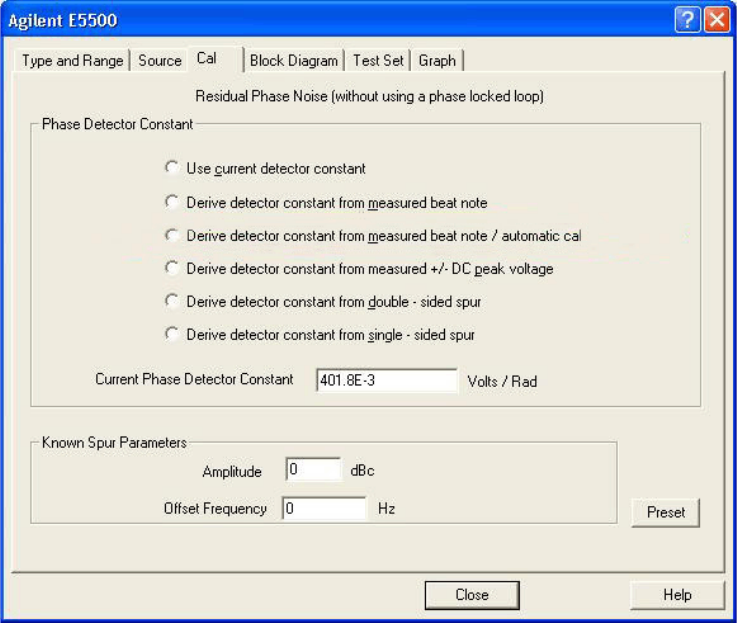

Figure 166 Select constant in the cal tab
