8 Residual Measurement Examples
5
From the Define menu, choose Measurement; then choose the Type and
Range tab from the Define Measurement window.
6 From the Measurement Type pull-down, select Residual Phase Noise
(without using phase lock loop). See Figure 164.
7 Choose the Sources tab from the Define Measurement window.
8 Enter the carrier (center) frequency of your DUT. Enter the same frequency
for the detector input frequency. See Figure 165 on page 232.
.

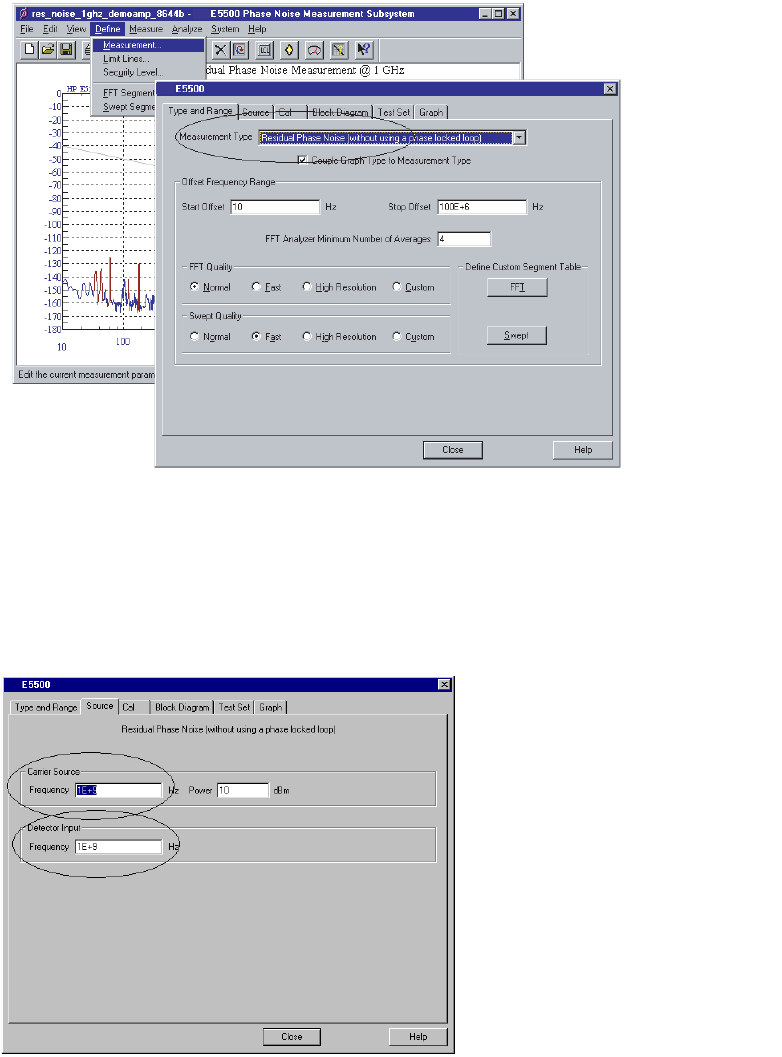

Figure 164 Navigate to residual phase noise
Figure 165 Enter frequencies into source tab
