Residual Measurement Examples 8
Agilent E5505A User’s Guide 231
Defining the measurement
1 From the File menu, choose Open.
2 If necessary, choose the drive or directory where the file you want is stored.
3 In the File Name box, choose “res_noise_1ghz_demoamp.pnm” See
Figure 163.
.
4 Click the Open button.
The appropriate measurement definition parameters for this example have
been pre-stored in this file. Table 38 on page 243 lists the parameter data
that has been entered for this residual phase noise measurement example.

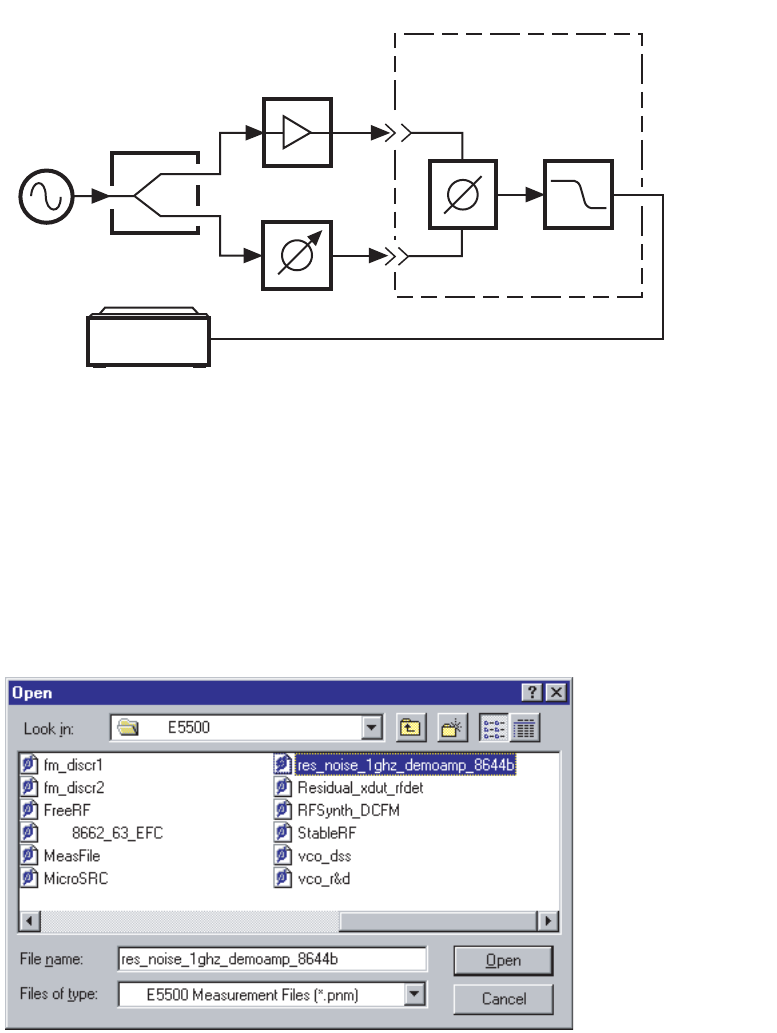

Figure 162 Setup for residual phase noise measurement
Power
splitter
Phase
detector
Source
E5505a_user_connect_osc_vol_peak
16 Mar 04 rev 3
DUT
Test set
Signal
input
Ref input
Optional line
stretcher
Low-pass
filter
Oscilloscope
Connect scope to monitor port
Figure 163 Select the parameters definition file
