222 Agilent E5505A User’s Guide

Residual Measurement Fundamentals

Advantages

• Requires only one RF source.

• Calibration is done under actual measurement conditions so all

non-linearities and harmonics of the phase detector are calibrated out.

Disadvantages

• Requires a phase modulator which operates at the desired carrier

frequency.

• Requires audio calibration source.

• Requires RF spectrum analyzer for manual measurement of

ΦM sidebands

or preferably a modulation analyzer.

PPPP

Procedure

Connect circuit as per Figure 157 and tighten all connections.

NOTE

Because the calibration is performed under actual measurement conditions, the

Double-sided Spur Method and the Single-sided Spur Method are the two most accurate

calibration methods.

NOTE

Most phase modulators are typically narrow-band devices; therefore, a wide range of test

frequencies may require multiple phase modulator.

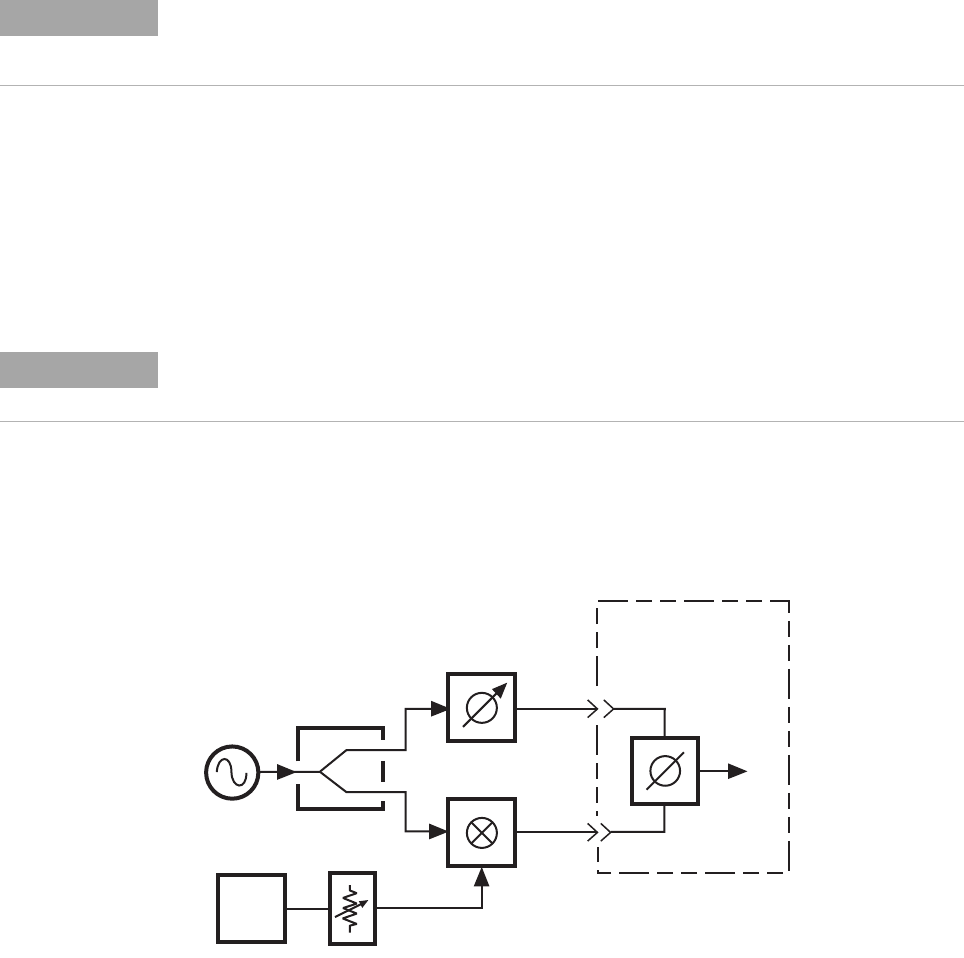

Figure 157 Calibration setup

Power

splitter Phase

detector

Source

-10 dB

attenuator

E5505a_calibration_setup

27 Feb 04 rev 1

Optional line

stretcher

Phase

modulator

Test set

Signal

input

Ref input

50Ω

load
