Residual Measurement Fundamentals

Agilent E5505A User’s Guide 213

Remove the power meter and reconnect the cable from the splitter to the

Signal Input port.

If you are not certain that the power level at the Reference Input port is

within the range shown in the preceding graph, measure the level using the

setup shown in Figure 151, “Measuring power at phase detector reference

input port,” on page 214.

Remove the power meter and reconnect the cable from the splitter to the

Signal Input port.

After you complete the measurement set up procedures and begin running

the measurement, the computer will prompt you to adjust for quadrature

(Figure 150 on page 214). Adjust the phase difference at the phase detector

to 90 degrees (quadrature) by either adjusting the test frequency or by

adjusting an optional variable phase shifter or line stretcher. Quadrature is

attained when the meter is set to center scale, zero.

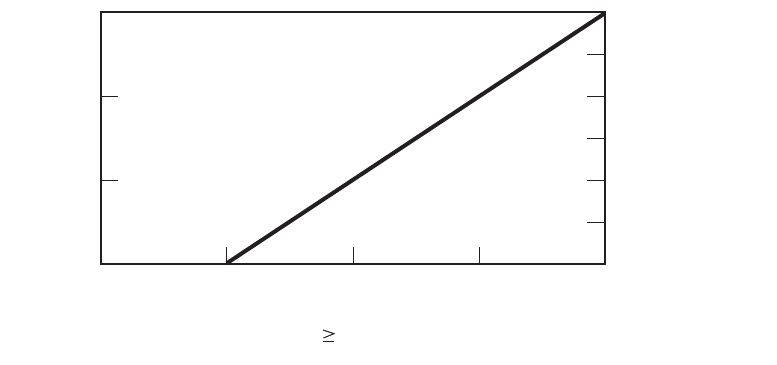

Figure 149 Phase detector sensitivity

-140 -160 -170 -180-150

Approximate phase noise floor (dBc/Hz)

f 10kHz

R Port signal level (dBm)

Detector constant

Kφ (V/rad)

-15

+15

-5

.02

.035

.06

.11

.35

E5505a_phase_det_sensitivity

27 Feb 04 rev 1
