Residual Measurement Fundamentals

7

Agilent E5505A User’s Guide 205

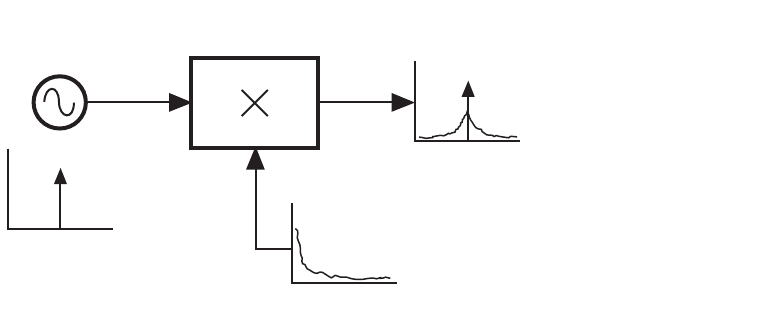

Figure 144 Multiplicative noise components

Device under

test

Source

Noiseless

source

Base band noise

Base band noise

mixed around

the signal
