Absolute Measurement Examples
6
Agilent E5505A User’s Guide 193
If the output amplitude of your DUT is not sufficient to provide an adequate
measurement noise floor, it will be necessary to insert a low noise amplifier
between the DUT and the downconverter input. (Refer to “Inserting a
Device" on page 122 for details on determining the effect that the
amplifier’s noise will have on the measured noise floor.)
Beginning the measurement
1
From the Measurement menu, choose New Measurement. See Figure 137.
.
2
When the Do you want to perform a New Calibration and Measurement?
prompt appears, click Yes.
3
When the Connect Diagram dialog box appears, click on the hardware
drop-down arrow and select your hardware configuration from the list. See
Figure 139 on page 194.

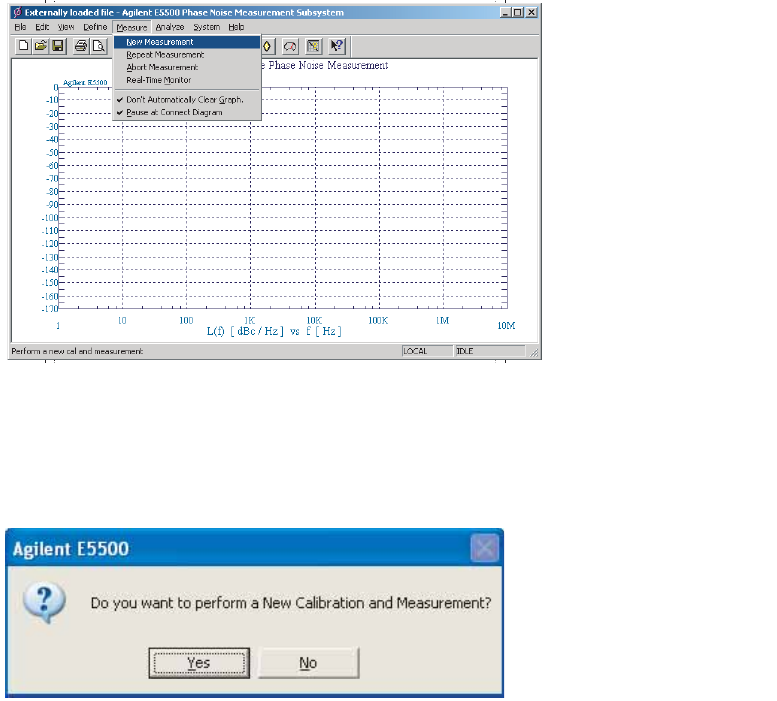

Figure 137 Selecting a new measurement
Figure 138 Confirm measurement dialog box
