192 Agilent E5505A User’s Guide
6
Absolute Measurement Examples
Setup considerations for the microwave source measurement
Measurement noise floor
Figure 136 shows a typical noise level for the N5502A/70422A downconverter
when used with the 8644B. Use it to help you estimate if the measurement
noise floor is below the expected noise level of your DUT.

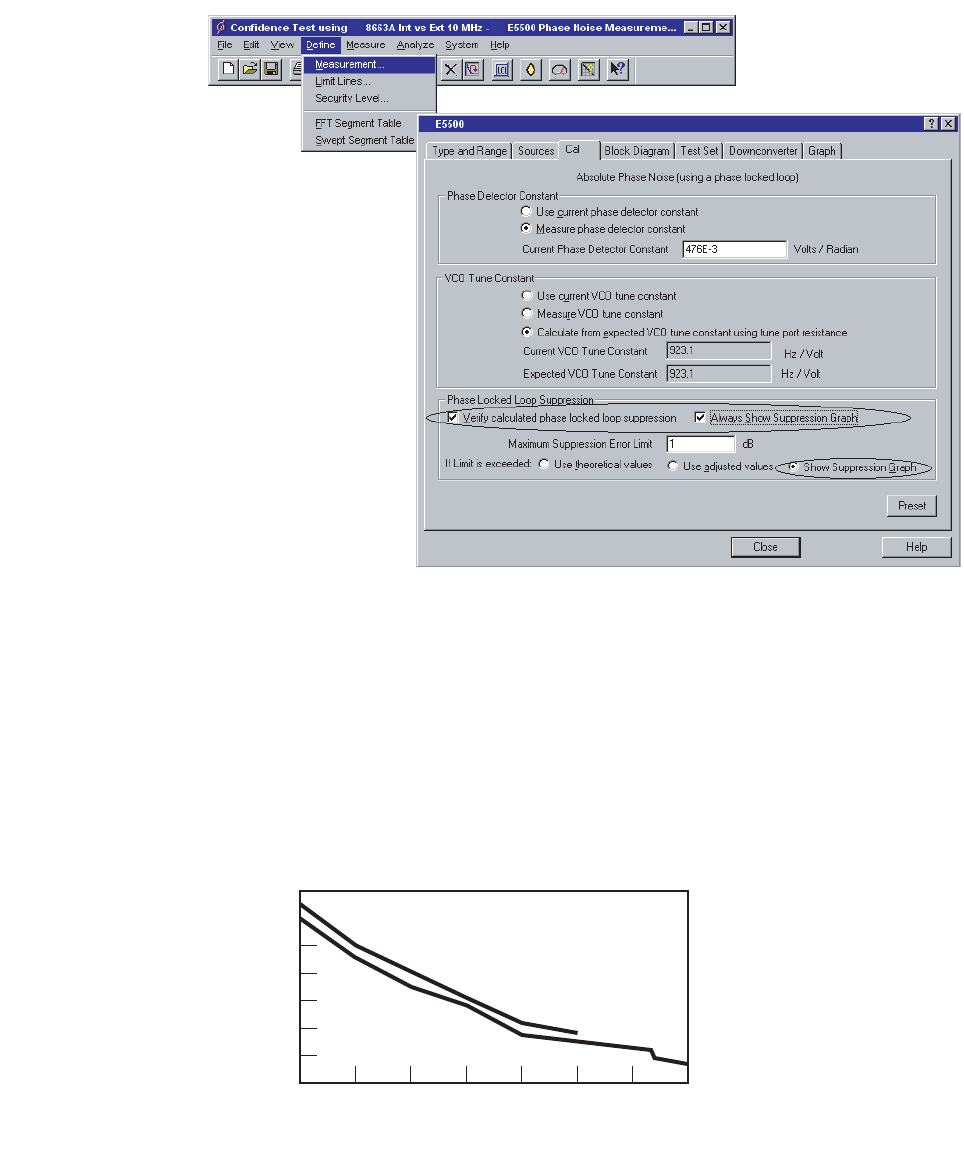

Figure 135 Selecting loop suppression verification
e5505a_user_select_loop
24 Jun 04 rev 3
Figure 136 Noise characteristics for the microwave measurement
10k1k100101 10M1M100k
-160
-140
-120
-100
-80
-60
-40
-20
E5505a_noise_charac_microwave
26 Feb 04 rev 1
Specification
Typical
Offset frequency (Hz)
Fc = 10 GHz
Phase noise ( (f) dBc/Hz)
