178 Agilent E5505A User’s Guide
6
Absolute Measurement Examples
Setup considerations for the RF synthesizer using EFC measurement
Measurement noise floor
The signal amplitude at the test set’s R input (Signal Input) port sets the
measurement noise floor level. Use Figure 124 and Figure 125 on page 179 to
determine the amplitude required to provide a noise floor level that is below
the expected noise floor of your DUT.

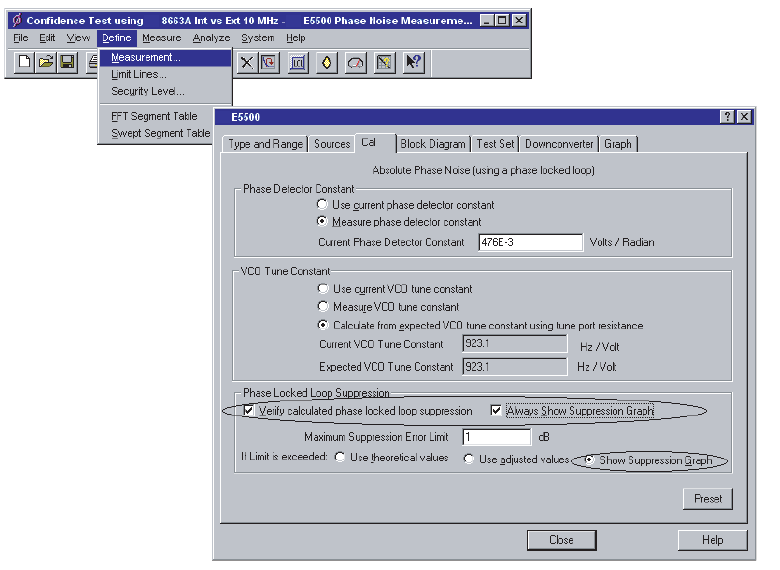

Figure 123 Selecting Loop suppression verification
e5505a_user_select_loop
24 Jun 04 rev 3
