Click the Open button.
The appropriate measurement definition parameters for this example have
been pre-stored in this file. Table 25 on page 186 lists the parameter data
that has been entered for the RF Synthesizer using DCFM measurement
example.
5 Using Figure 92 as a guide, navigate to the Sources tab.
a Enter the carrier (center) frequency of your DUT (5 MHz to 1.6 GHz).
Enter the same frequency for the detector input frequency.
b Enter the VCO (Nominal) Tuning Constant (see Table 20 on page 162).
c Enter the Tune Range of VCO (see Table 20).
d Enter the Center Voltage of VCO (see Table 20).
e Enter the Input Resistance of VCO (see Table 20).
NOTE
Note that the source parameters entered for step 2 in Ta bl e 2 2 on page 172 may not be
appropriate for the reference source you are using. To change these values, refer to
Tab le 2 0 on page 162, then continue with step 5 below. Otherwise, go to “Beginning the
measurement" on page 166

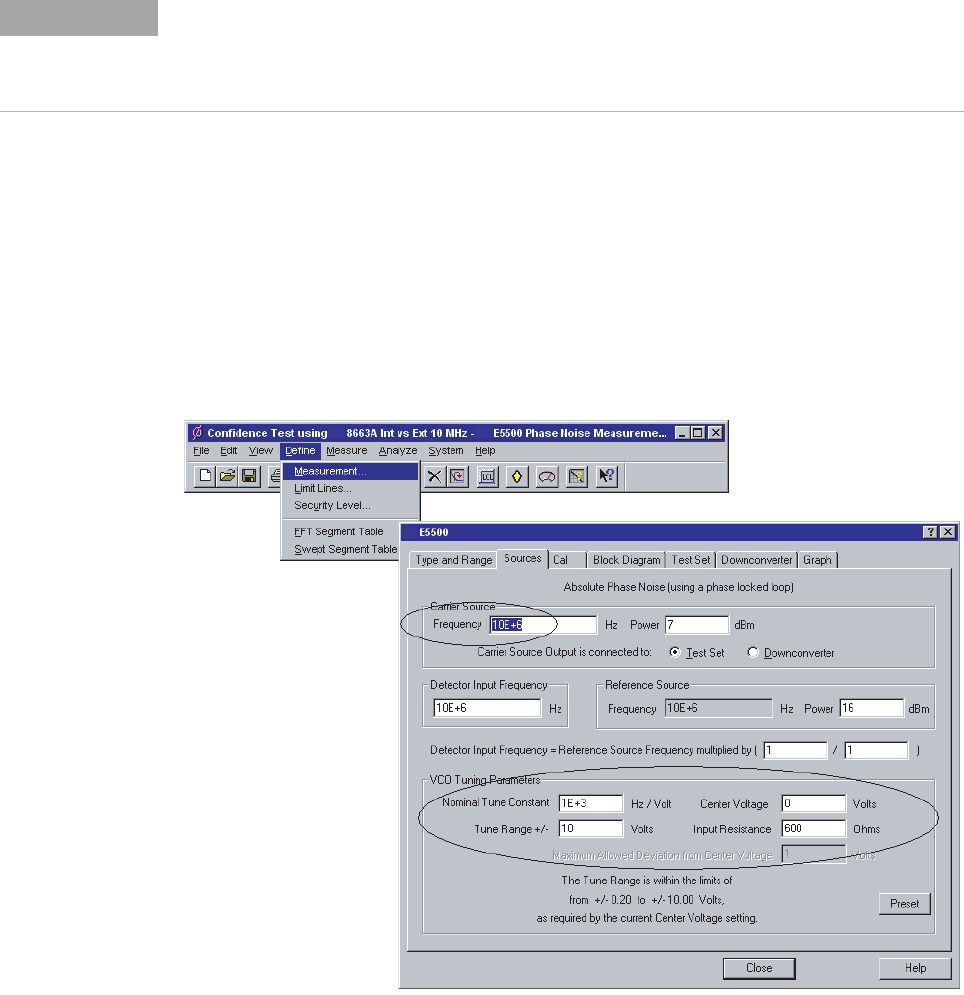

Figure 109 Enter source information
e5505a_user_enter_source_info
