Selecting a reference source
1 Using Figure 98 as a guide, navigate to the Block Diagram tab.
2 From the Reference Source pull-down list, select your source.
3 When you have completed these operations, click the Close button.
Selecting Loop Suppression Verification
1 Using Figure 99 on page 149 as a guide, navigate to the Cal tab.
2 In the Cal dialog box, check Verify calculated phase locked loop
suppression and Always Show Suppression Graph. Select If limit is
exceeded: Show Loop Suppression Graph.

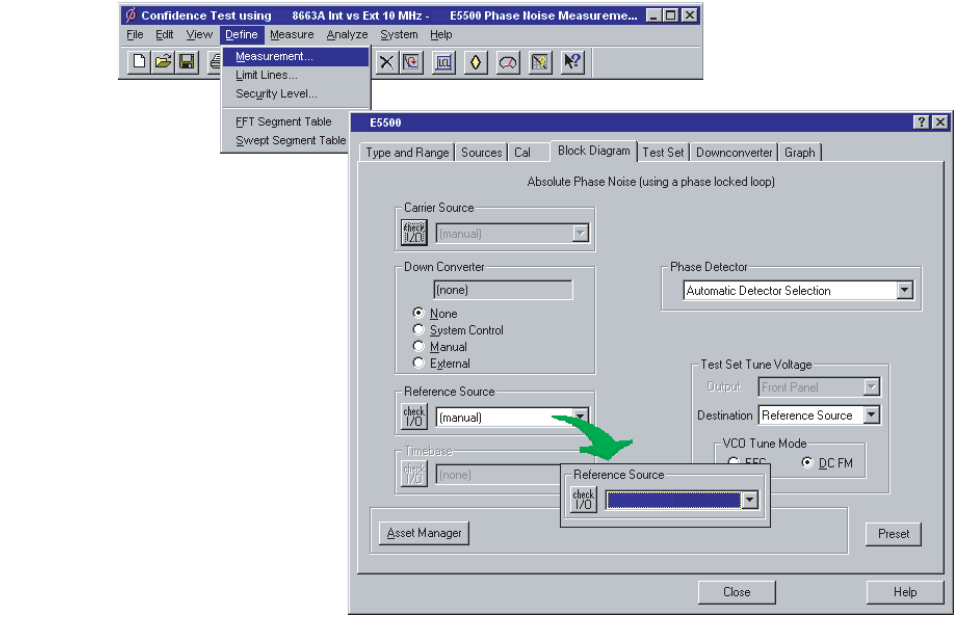

Figure 98 Selecting a reference source
e5505a_user_select_ref_source
