6 Absolute Measurement Examples
4
Click the Open button.
The appropriate measurement definition parameters for this example have
been pre-stored in this file. Table 16 on page 143 lists the parameter data
that has been entered for the Free-Running RF Source measurement
example.)
5 Using Figure 84 as a guide, navigate to the Sources tab.
e Enter the carrier (center) frequency of your DUT(5 MHz to
1.6 GHz). Enter the same frequency for the detector input frequency.
f Enter the VCO (Nominal) Tuning Constant (see Table 17 on page 147).
g Enter the Tune Range of VCO (see Table 17).
h Enter the Center Voltage of VCO (see Table 17).
i Enter the Input Resistance of VCO (see Table 17).

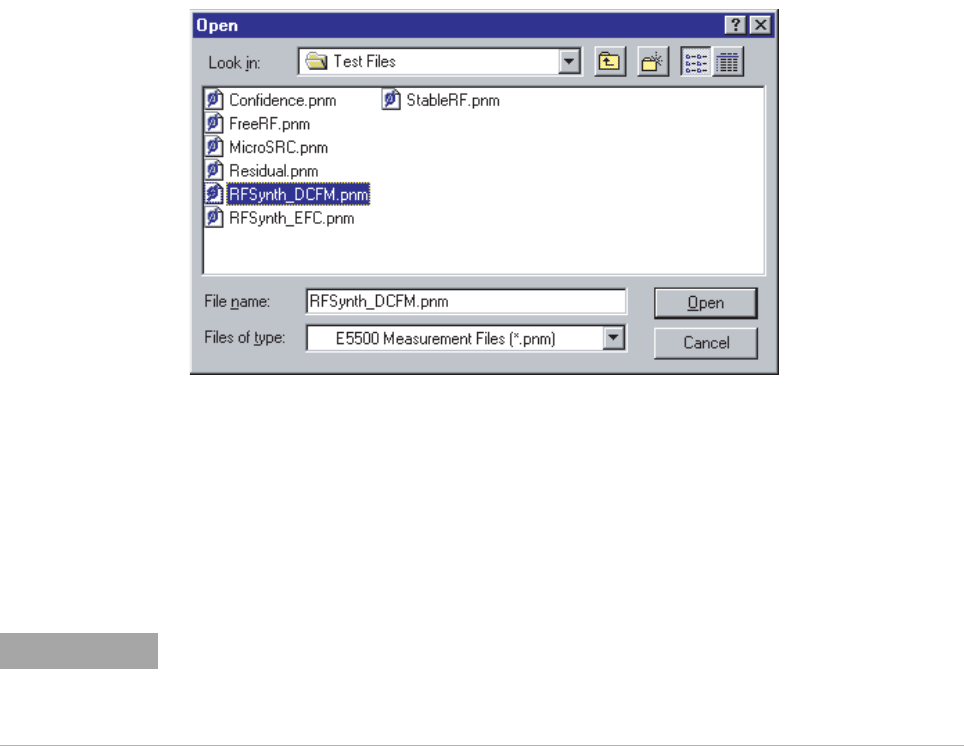

Figure 96 Select the parameters definition file
5505 l d f fil f h
NOTE
Note that the source parameters entered for step 2 in Ta bl e 1 6 on page 143 may not be
appropriate for the reference source you are using. To change these values, refer to
Tab le 1 7 on page 147, then continue with step 5 below. Otherwise, go to “Beginning the
measurement" on page 151.
