Four different curves are available for this graph. (For more information about

loop suppression verification, refer to Chapter 15, “Advanced Software

Features.)

“Measured” loop suppression curve—this is the result of the loop

suppression measurement performed by the E5505A system.

“Smoothed” measured suppression curve—this is a curve-fit

representation of the measured results, it is used to compare with the

“theoretical” loop suppression.

“Theoretical” suppression curve—this is the predicted loop suppression

based on the initial loop parameters defined/selected for this particular

measurement (kphi, kvco, loop bandwidth, filters, gain, etc).

“Adjusted” theoretical suppression curve—this is the new “adjusted”

theoretical value of suppression for this measurement. It is based on

changing loop parameters (in the theoretical response) to match the

“smoothed” measured curve as closely as possible.

When the measurement is complete, refer to Chapter 14, “Evaluating Your

Measurement Results for help in evaluating your measurement results.

Figure 95 on page 142 shows a typical phase noise curve for a stable RF

Oscillator.

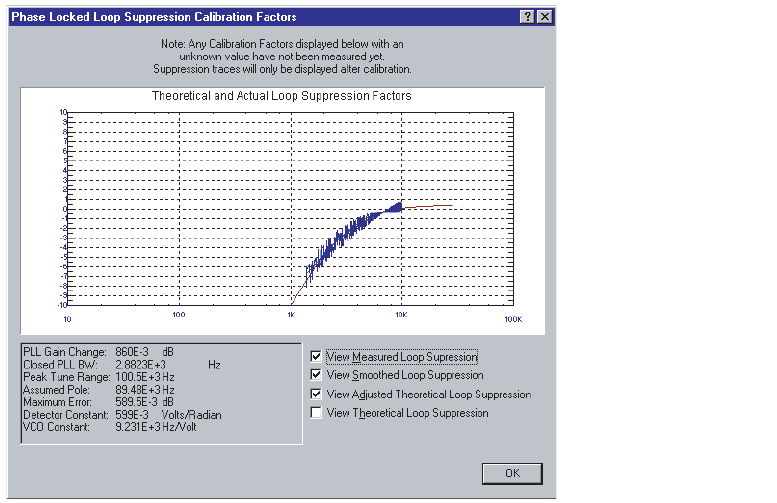

Figure 94 Selecting suppressions
