Absolute Measurement Examples
6
Agilent E5505A User’s Guide 137
4
Connect your DUT and reference sources to the test set at this time.
Confirm your connections as shown in the connect diagram.
The input attenuator (Option 001 only) is now correctly configured
based on your measurement definition.

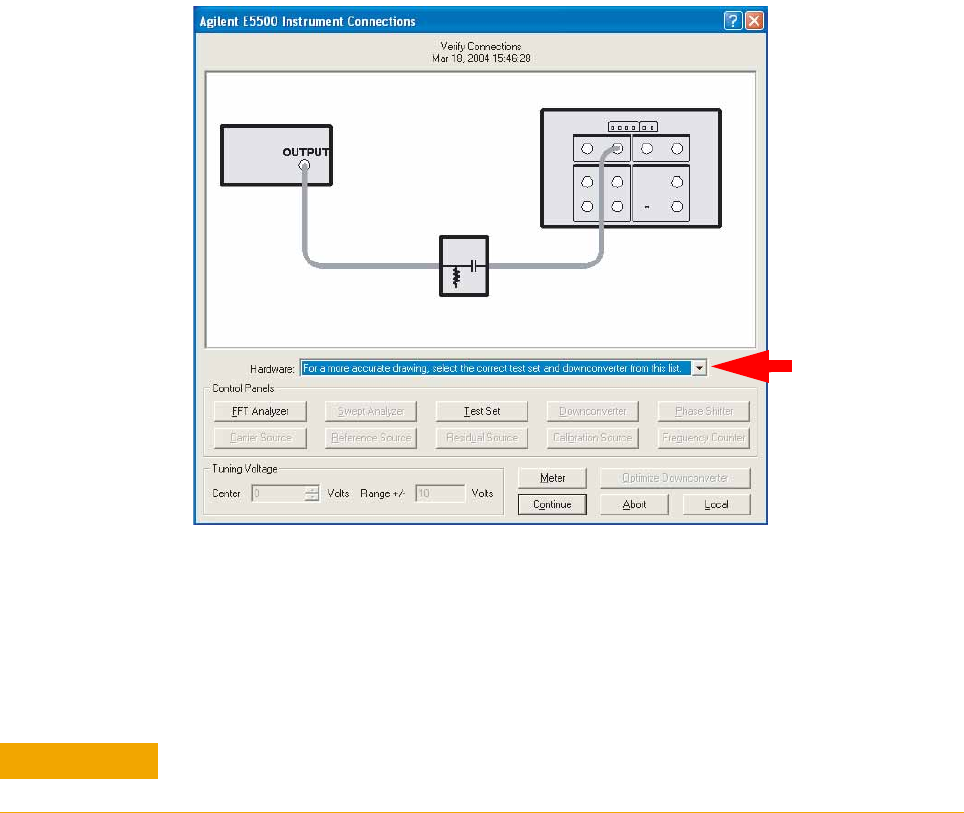

Figure 92 Connect diagram for the stable RF oscillator measurement
CAUTION
The test set’s signal input is subject to the limits and characteristics in Tab l e 15 on
page 138.
