Absolute Measurement Examples
6
Agilent E5505A User’s Guide 131
4
Click the Open button.
The appropriate measurement definition parameters for this example have
been pre-stored in this file. Table 16 on page 143 lists the parameter data
that has been entered for the Stable RF Source measurement example.
5
Using Figure 85 on page 131 as a guide, navigate to the Sources tab.
a
Enter the carrier (center) frequency of your DUT (5 MHz to 1.6 GHz).
Enter the same frequency for the detector input frequency.
b
Enter the VCO (nominal) Tuning Constant. (For values, see Table 14 on
page 132).
c
Enter the Tune Range of VCO (see Table 14).
d
Enter the Center Voltage of VCO (see Table 14).
e
Enter the Input Resistance of VCO (see Table 14).
.
NOTE
Note that the source parameters entered for step 2 in Ta bl e 1 6 on page 143 may not be
appropriate for the reference source you are using. To change these values, refer to
Tab le 1 4 , “Tuning characteristics for various sources,” on page 132, then continue with
step 5 below. Otherwise, go to “Beginning the measurement" on page 136:

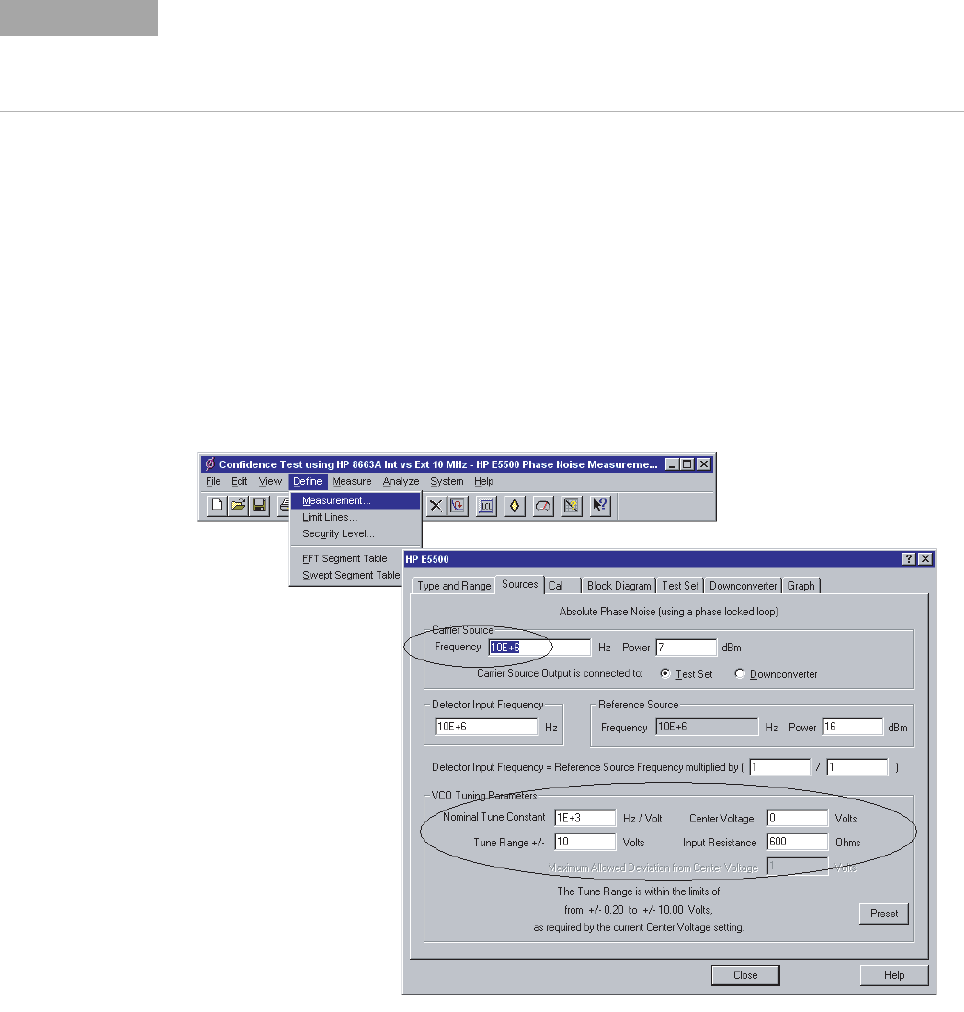

Figure 85 Enter source information
