130 Agilent E5505A User’s Guide

Absolute Measurement Examples

Stable RF Oscillator

This measurement example will help you measure the phase noise of a stable

RF oscillator with frequency drift of <20 ppm over a period of thirty minutes.

Required equipment

This measurement requires a VCO reference source, in addition to the phase

noise test system and your DUT. (For more information, see “Selecting a

reference source" on page 132.) You also need the coaxial cables and adapters

necessary to connect the DUT and reference source to the test set.

Defining the measurement

From the File menu of the E5500 User Interface, choose Open.

If necessary, choose the drive or directory where the file you want is stored.

In the file name box, choose “StableRF.pnm”. See Figure 84.

CAUTION

To prevent damage to the test set’s components, do not apply the input signal to

the signal input connector until the input attenuator has been correctly set for the

desired configuration, as shown in Tab l e 1 5 on page 138. Apply the input signal

when the connection diagram appears.

NOTE

To ensure accurate measurements allow the DUT and measurement equipment to warm

up at least 30 minutes before making the noise measurement.

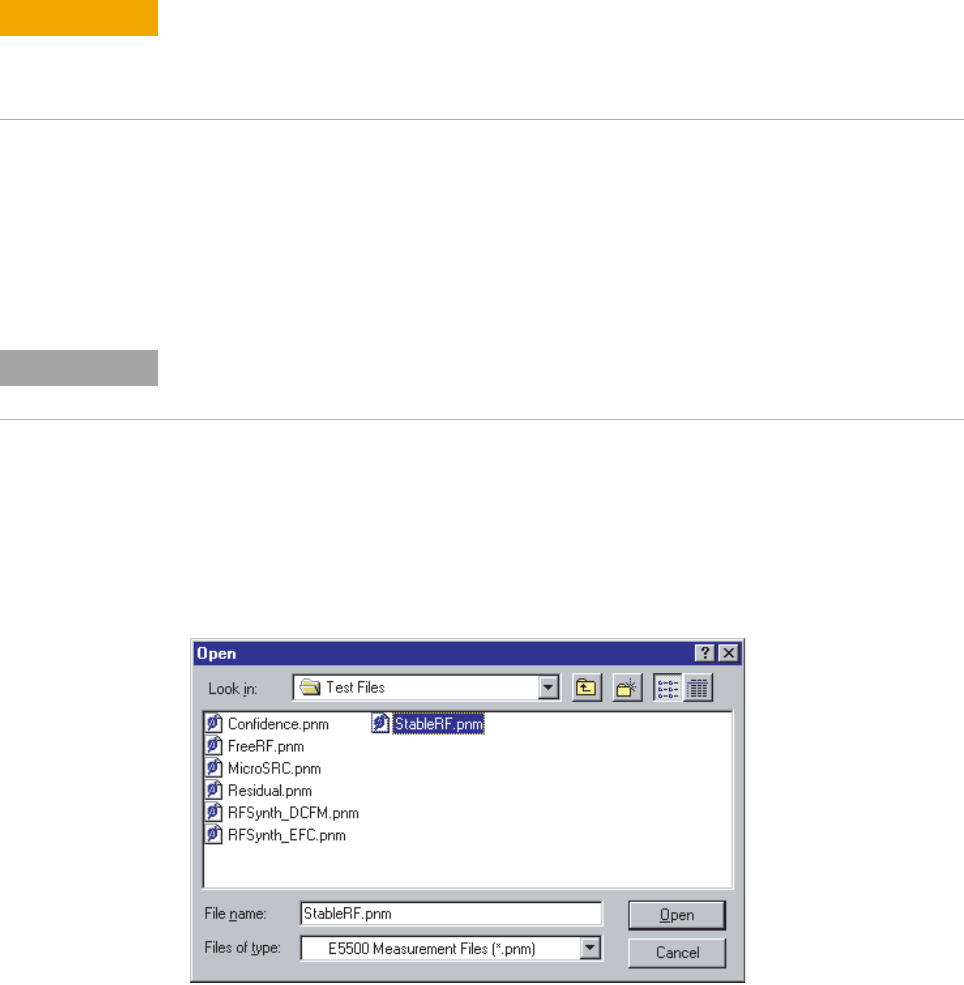

Figure 84 Select the parameters definition file
