Absolute Measurement Fundamentals
5
Agilent E5505A User’s Guide 121
computer informs you during the measurement if the possibility of
accuracy degradation exists.)
3
Locate the required PLL bandwidth in Figure 78 to determine the PTR
required for the measurement. (For details on increasing the PTR, refer to
Changing the PTR in this section.

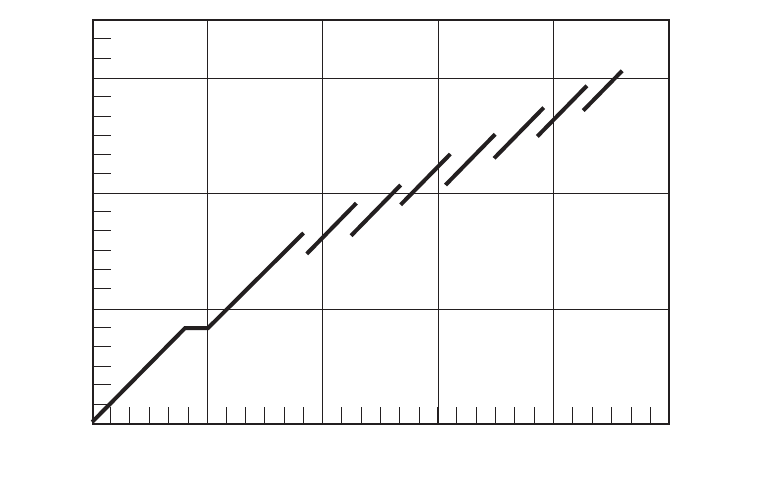

Figure 78 Peak tuning range (PTR) Required by injection locking.
Required PPL bandwidth (Hz)
.1 10 100 1k 10k 100k 1M 10M 100M 1G1
100
1
10
100k
1k
1M
10k
E5505a_PTR_reqd_inj_lock
25 Mar 04 rev 1
Peak tuning range (Hz)
