User`s guide

1 Adjust controls until the desired signal is displayed.
2 Press Voltage .
3 Press the Source softkey until the desired source is selected.
4 Press the Next Menu softkey until the Vamp softkey is displayed on the
far left side.
5 Press the desired Voltage Measurement softkey.
•
Vamp Select to perform a voltage amplitude measurement.
•
Vover Select to perform an overshoot measurement.
•
Vpre Select to perform a preshoot measurement.

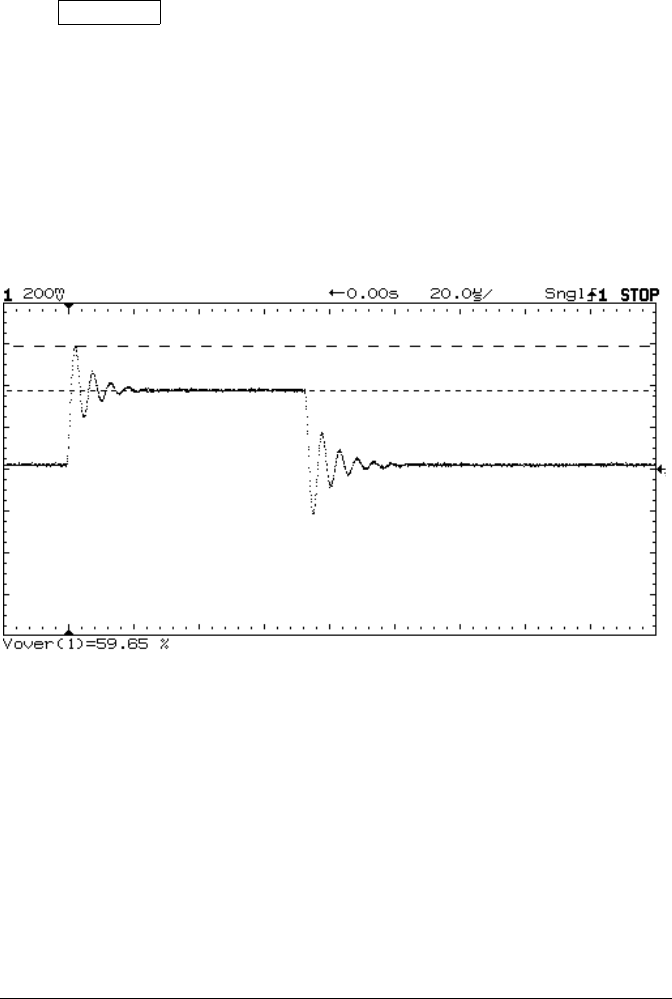

Automatic Overshoot Measurement
Figure 2– 9
Operating the Measurement/Storage Module
To make additional voltage measurements automatically
2–24
