Chapter 1 Performance Tests
Agilent 53210A/53220A/53230A Complete Performance Tests
Assembly-Level Service Guide 47
12 Press the Statistics softkey:

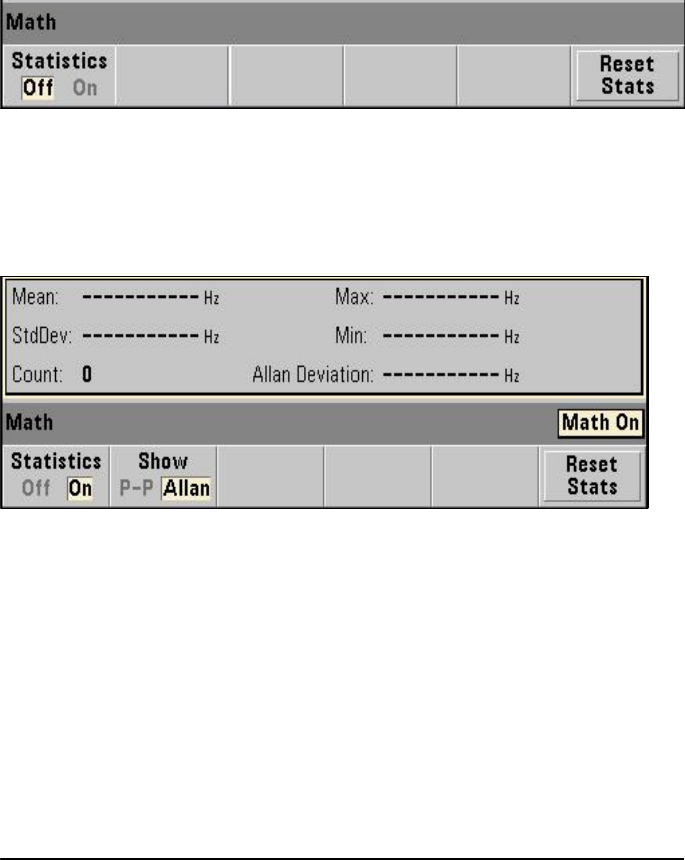

–The Statistics softkeys are displayed:
13 Press to set:
• Statistics: On
• The display shows:
Pulse Width Test Procedure
1Press the Trigger key.
• Counter takes 100 readings and fills in Math functions.
2 Verify the ‘Mean’ is:
• 5 ± 0.4 nSec (53220A)
• 5 ± 0.2 nSec (53230A)
3 Verify the ‘Std Dev’ is less than:
