Chapter 5 Replaceable Parts
Replaceable Parts
244 Assembly-Level Service Guide
NOTE If installed, Option 300 Internal DC Battery Assembly (not shown)
would cover the area between the arrows.

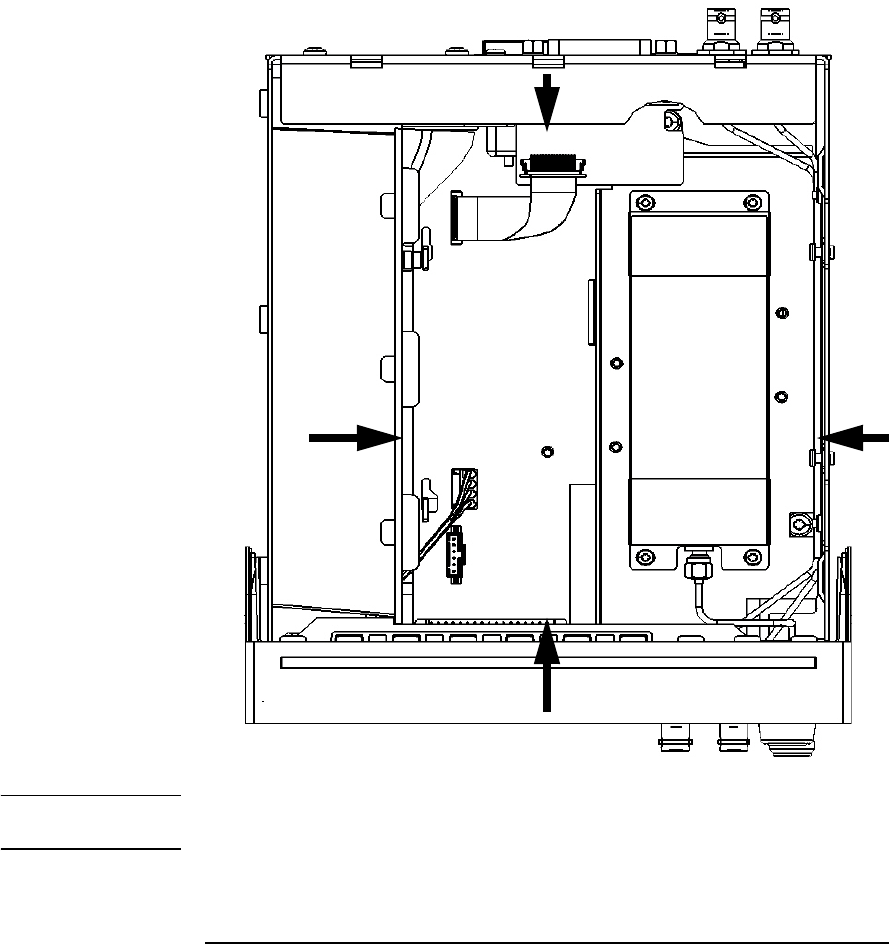

Figure 5-1. Agilent 53210A/53220A/53230A Counters, Top View (Cover
Off)
AC
POWER
SUPPLY
MOTHERBOARD
GPIB
OPTION 106
OR
OPTION 115
FRONT PANEL
FRONT
REAR
