Chapter 4 Retrofitting Options
To Retrofit the 53220A/53230A Channel 3 Input, 6.0 GHz (Option 106) or
15.0 GHz (Option 115) plus Front Panel Option 202
Assembly-Level Service Guide 225
6 Remove the T20 TORX screw on the front left-hand side of the
motherboard as shown in Figure 4-18.

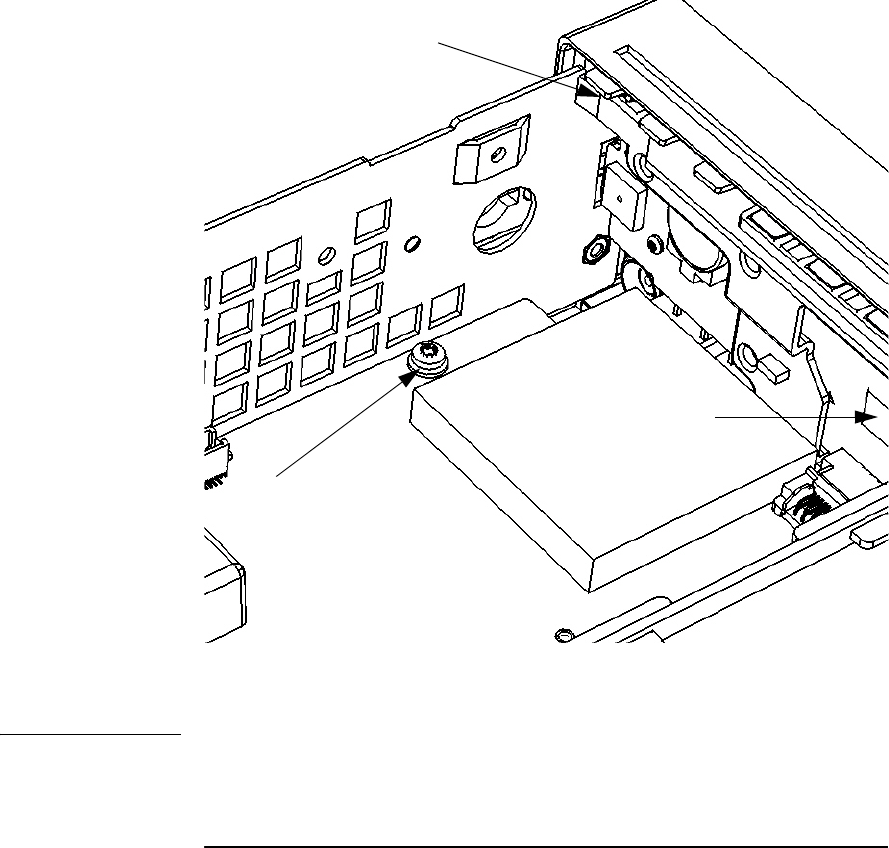

Figure 4-18. T20 TORX Screw on Motherboard
NOTE The four standoffs on the aluminum side panels (two on each side,
front) secure the front panel into the four holes cut out on the
plastic sides of the front panel (two on each side). The next steps
X
T20 TORX Screw
Motherboard
Y
