Chapter 4 Retrofitting Options
To Retrofit the 53220A/53230A Channel 3 Input, 6.0 GHz (Option 106) or
15.0 GHz (Option 115) plus Front Panel Option 202
Assembly-Level Service Guide 223
NOTE Refer as necessary to Figure 4-16.
– If Option 115 is being installed, insert and tighten the two
supplied standoffs (using a 1/4" spintite) in the two middle
holes closest to the rear flange of the Channel 2 assembly
(Front Panel Option 202 only).
– Position the PC board over the aluminum bracket so that
the SMA edge connector is pointed toward the front flange
(without the hole) and sits on top of the standoffs.
– Install 4 (Option 106) or 6 (Option 115) T10 TORX screws to
secure the PC board to the aluminum deck.

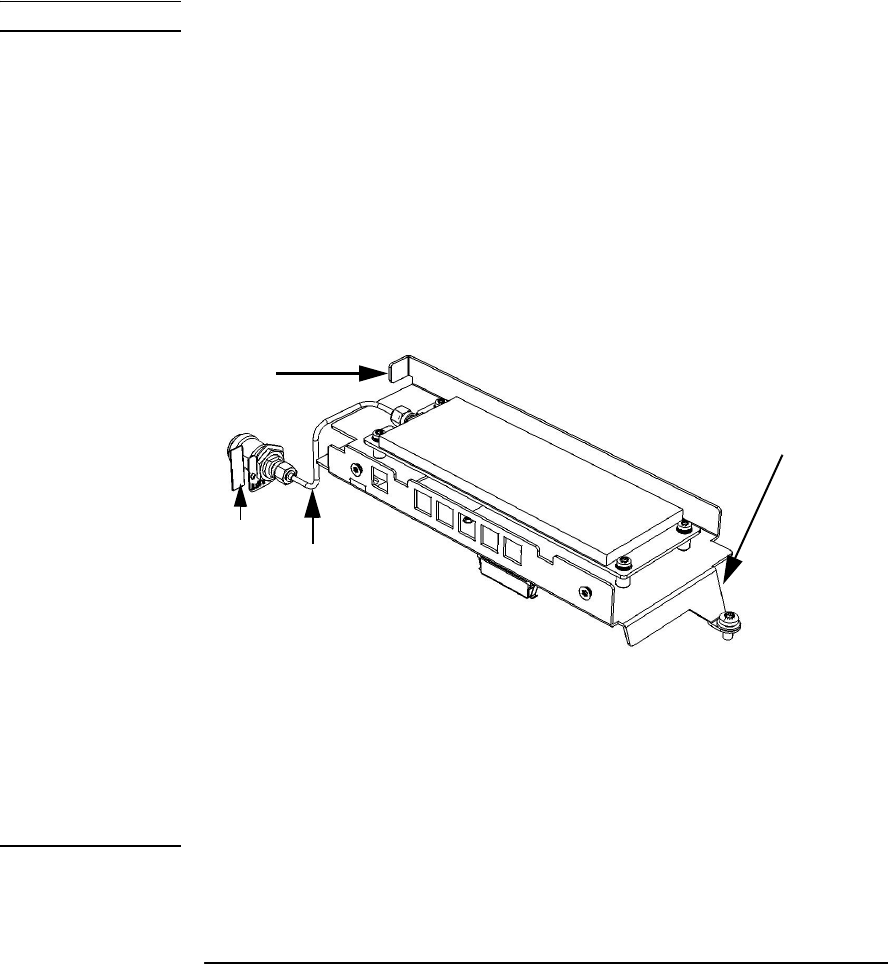

Figure 4-16. 53220A/53230A Option 106/202.
Front Panel Installation Procedure (Option 202 only)
1 Remove the front panel assembly as follows:
NOTE Read each instruction step in its entirety, while examining the
hardware and referring to the appropriate figure(s), before
proceeding with the step. This will acquaint you completely, in
advance, with the action to be performed. The actions in some
Front
Flange
Rear
Flange
Semi-rigid
Cable
Position
Label
