Chapter 4 Retrofitting Options
To Retrofit the 53210A Channel 2 Rear Panel Input, 6.0 GHz (Option 106)
or 15.0 GHz (Option 115) plus Rear Panel Option 203
218 Assembly-Level Service Guide
6 Assemble the parts in the Option 106/115 package as follows:
NOTE Refer as necessary to Figure 4-14.
– If Option 115 is being installed, insert and tighten the two
supplied standoffs (using a 1/4" spintite) in the two middle
holes closest to the front flange of the Channel 2 assembly
(Rear Panel Option 203 only).
– Position the printed circuit board over the aluminum
bracket so that the SMA edge connector is pointed toward
the rear flange (with the hole in it) and sits on top of the
standoffs.
– Install 4 (Option 106) or 6 (Option 115) T10 TORX screws to
secure the printed circuit board to the aluminum deck.

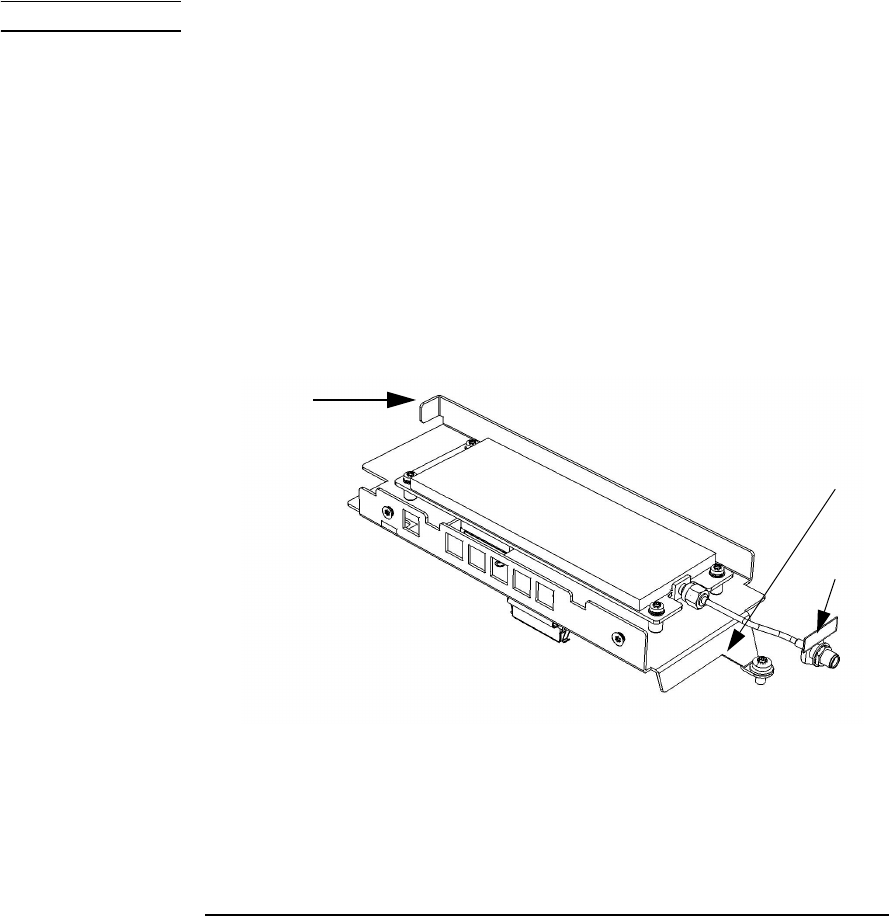

Figure 4-14. 53210A Channel 2 Rear Panel Option 106/203
Front
Flange
Rear
Flange
Label
