Chapter 4 Retrofitting Options
To Retrofit the 53210A Channel 2 Front Panel Input (Option 106 or
Option 115, plus Front Panel Option 202)
214 Assembly-Level Service Guide
21 Connect one end of the supplied 40-pin ribbon cable to J900 on the
motherboard. Connect the other end to J401 on the underside of
the Channel 2 assembly.
22 Set the Channel 2 assembly down on top of the motherboard so
that the female SMA edge connector is near the male SMA
connector of the semi-rigid cable installed on the front panel
assembly (see Figure 4-13).
NOTE The front flange on the right-front of the Channel 2 assembly
bracket must rest on the tab protruding from the front panel (see
Figure 4-13).

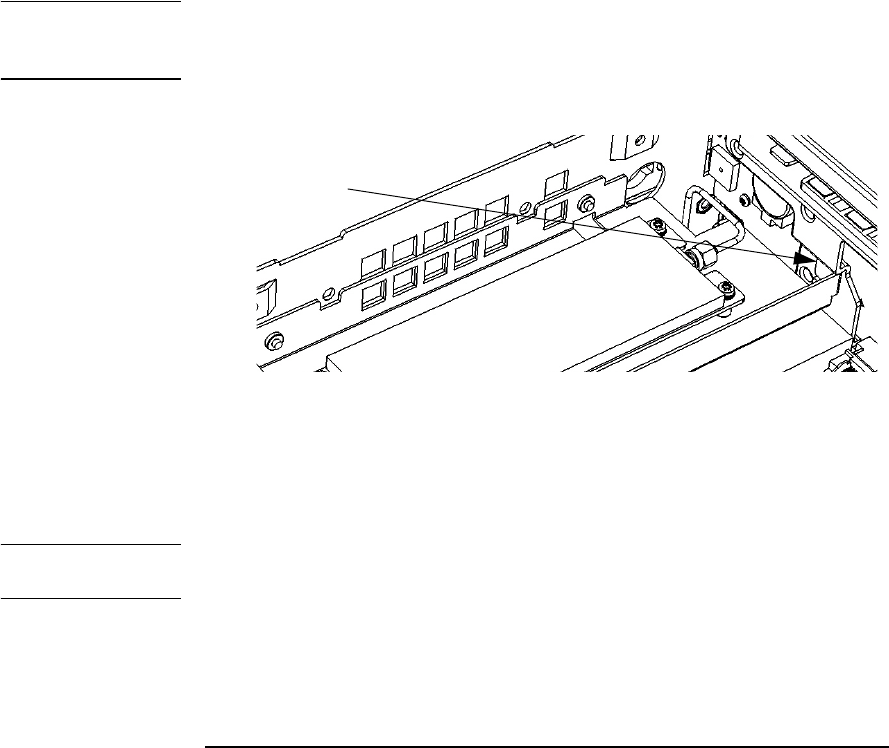

Figure 4-13. Front Flange Resting On Plastic Tab
23 Line up the semi-rigid SMA cable male connector and the Channel
2 assmbly SMA female edge connector, connect them together and
loosely tighten the SMA connector.
NOTE Be sure the flange on the front of the Channel 2 assembly remains
positioned over the tab on the front panel assembly.
24 Re-install the T20 TORX screw removed in step 19 above, securing
the rear flange on the Channel 2 bracket to the motherboard with
the screw. Do not tighten the screw all the way down at this time.
Front
Flange
Option 106
or 115
