Chapter 4 Retrofitting Options
To Retrofit the Internal Battery DC Power (Option 300)
Assembly-Level Service Guide 201
10 Press the opposite side of the battery assembly down until the two
tabs on the battery assembly deck rest in the the cutouts of the
chassis side panel.

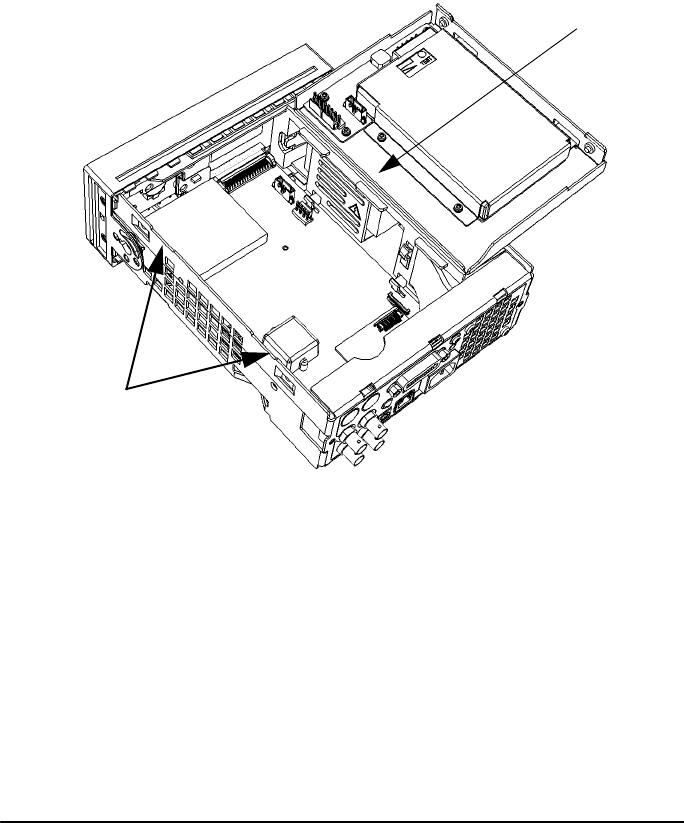

Figure 4-6. Battery Assembly Held By Three Small Tabs
11 Install the supplied TORX T20 screws and lockwashers (2 each)
through the provided chassis holes into the imbedded nuts in the
battery deck and secure.
12 Re-install the cover by performing the cover removal procedure
(Preliminary Steps 1 through 4), in reverse.
3 Tabs
Cutouts
