Chapter 1 Performance Tests
Self-Test (Q)
Assembly-Level Service Guide 19
Self-Test (Q)
A brief power-on test occurs automatically whenever you turn on the
counter. This limited test assures that the counter is functional.
NOTE It is recommended that the counter Self-Test be performed to
ensure that the instrument is completely functional before
running the Operational Verification or Performance Tests.
NOTE SELF-TEST and the remote command *TST perform the same
internal tests.
An Auto-Calibration is performed as a subset of the counter Self-Test. (See
“Internal Auto-Calibration” on page 136 for more information.)
After turn-on, or at any time a reasonable operational status needs to be
verified, the internal Self-Test can be run.
Run Internal Self-Test
1 Disconnect any input signal(s) from the counter.

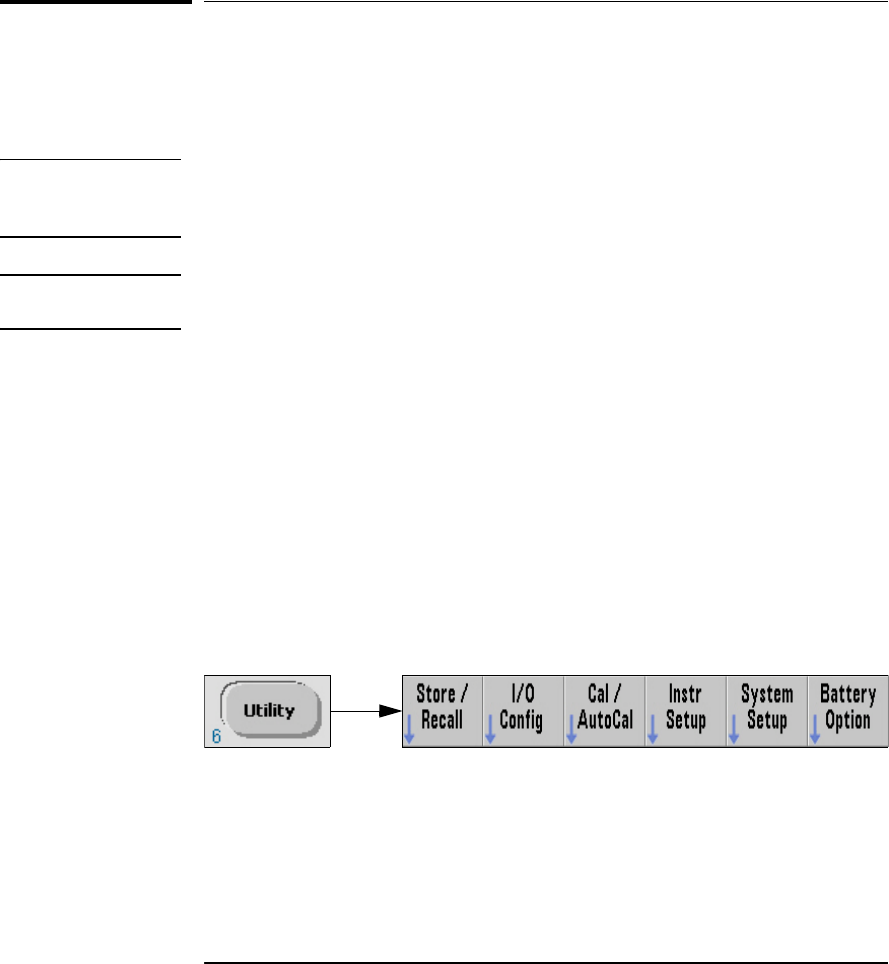

2Press the Utility key and then the Instr Setup softkey.
