Chapter 3 Replacing Assemblies
To Remove the Front Panel Assembly
Assembly-Level Service Guide 183
7 Turn the chassis upside down. Remove the smaller Processor
board from the motherboard as described previously (see Figure
3-6).
8 Remove the board carefully from its edge connector and set it
aside in a safe location on the ESD mat.
9 Turn the counter chassis upright and position the counter as
shown in Figure 3-8.
10 Remove the T20 TORX screw on the front left-hand side of the
motherboard as shown in Figure 3-8.

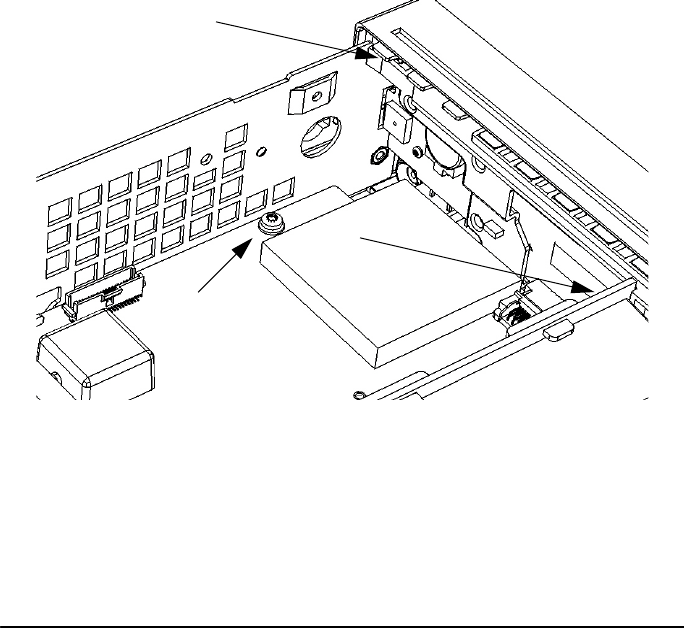

Figure 3-8. Front Panel Removal
T20
Motherboard
X
Y
