Chapter 3 Replacing Assemblies
To Remove the Cover and Rear Bezel
Assembly-Level Service Guide 173
To Remove the Cover and Rear Bezel
The following steps are for removing the cover and rear bezel. The cover is
removed to access the board and cable assemblies, and all other internal
parts.
WARNING WHEN THE COVER IS REMOVED FROM THE INSTRUMENT,
LINE VOLTAGES ARE EXPOSED WHICH ARE DANGEROUS AND
MAY CAUSE SERIOUS INJURY IF TOUCHED. DISCONNECT
POWER AND WAIT 6 MINUTES BEFORE STARTING.
1 Turn off the counter and remove the power cord.
2 Remove the handle by rotating it to the vertical position and
pulling the ends outward as shown in Figure 3-1.

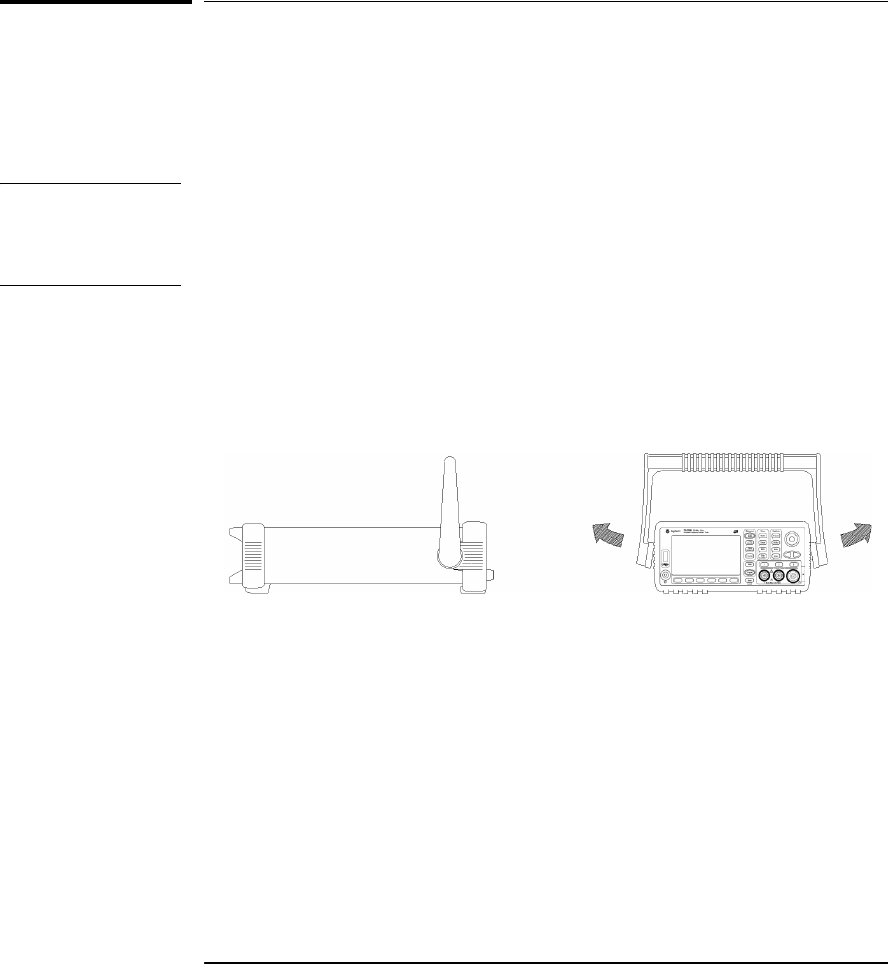

Figure 3-1. Handle Removal
3 To remove the rear bezel and cover, loosen the captive screws on
the sides as shown in Figure 3-2, using the TORX 20 screwdriver.
