Chapter 2 Service
Pre-Troubleshooting Information
148 Assembly-Level Service Guide

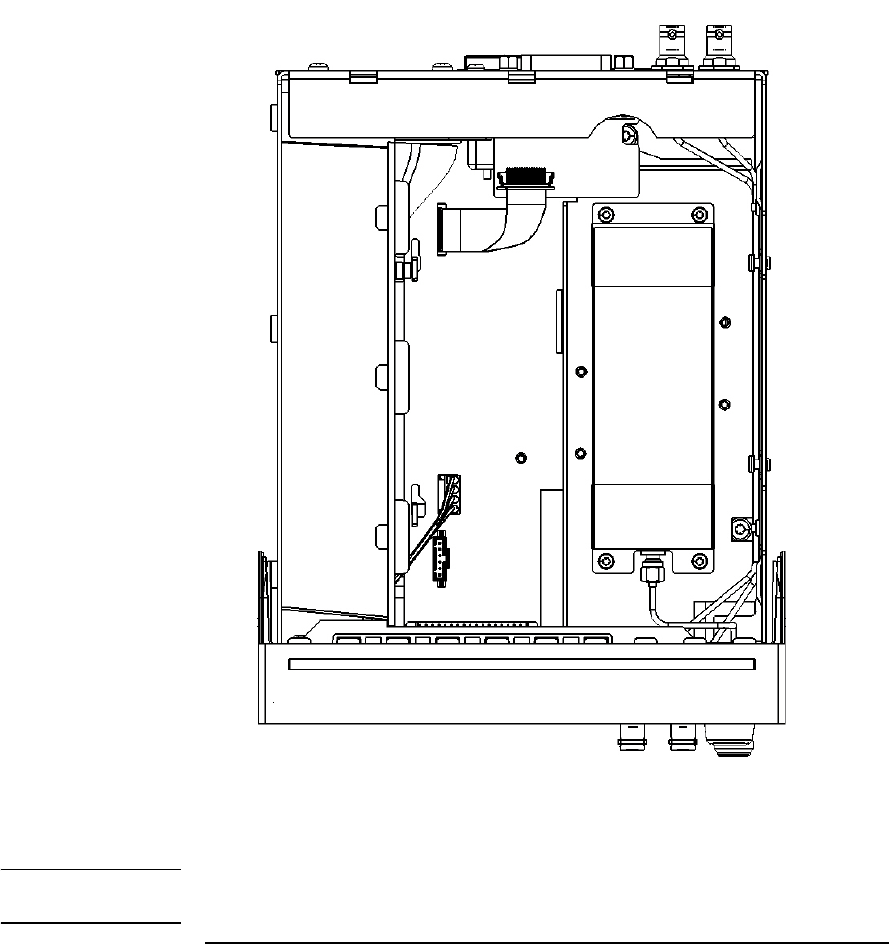

Figure 2-9. Counter Top Internal View
NOTE Option 300 (Internal DC battery assembly), if installed, is on top
of, and covers, the motherboard and Option 106/115 Assemblies.
REAR
FRONT
GPIB
Option 106
(6 GHz)
or
Option 115
(15 GHz)
Motherboard
AC
Power
Supply
Front Panel Display
