4 Making Measurements
90 Agilent 3000 Series Oscilloscopes User’s Guide
Voltage Measurements
There are 10 automatic voltage measurements:
• Vpp (Peak- to- Peak Voltage).
• Vmax (Maximum Voltage).
• Vmin (Minimum Voltage).
• Vavg (Average Voltage).
• Vamp (Amplitude Voltage = Vtop - Vbase).
• Vtop (Top Voltage).
• Vbase (Base Voltage).
• Vrms (Root- Mean- Square Voltage).
• Overshoot.
• Preshoot.
Vpp (Peak-to-Peak Voltage)
Peak- to- peak voltage. See Figure 40 on page 90.

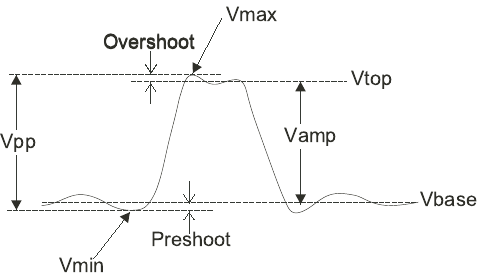

Figure 40 Voltage Measurement Points
