1Getting Started
26 Agilent 3000 Series Oscilloscopes User’s Guide
Using the Oscilloscope Menus
When one of the oscilloscope front panel buttons turns on a menu, you
can use the five menu buttons to select items from the menu.
Some common menu item selections are:
• — accesses the next page of items in the menu.
• — accesses the previous page of items in the menu.

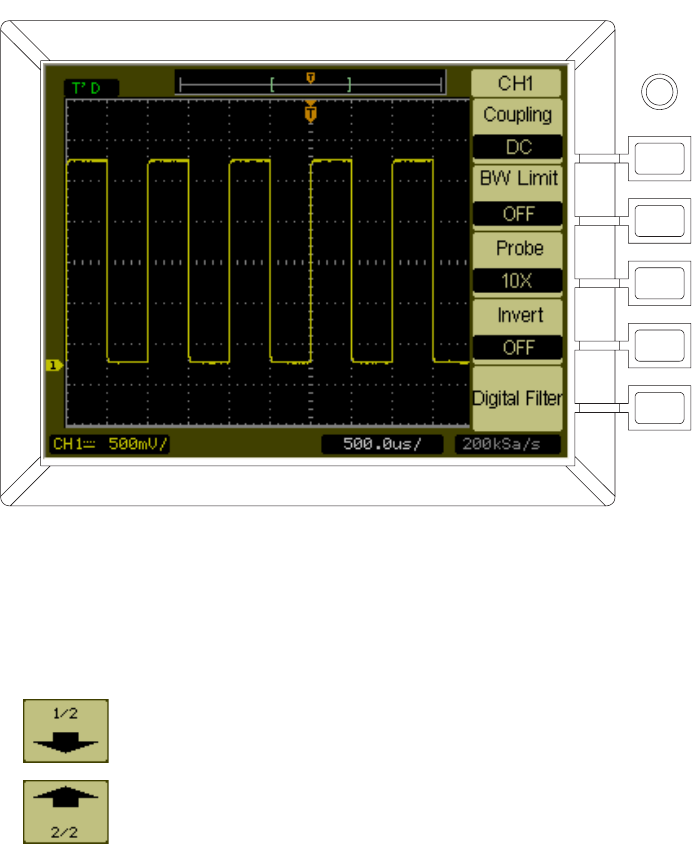

Figure 4 Menu Buttons
MENU
ON/OFF
