Technical data

8Service
138 Agilent 3000 Series Oscilloscopes User’s Guide
5 Select the Default Setup item in the Save/Recall menu.
6 Press the Auto-Scale
front panel button.
7 Set the channel 1 vertical scale to 200 mV/div.

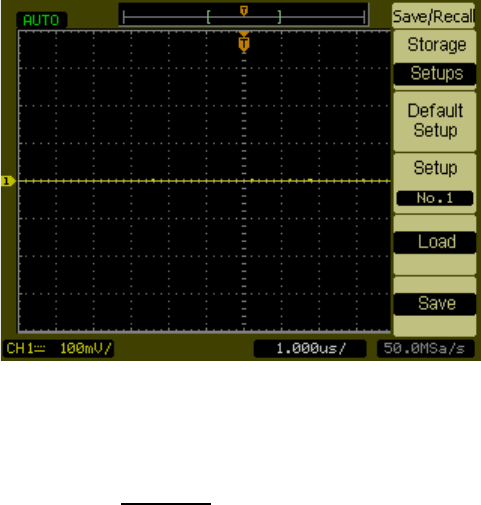

Figure 57 Default Setup Menu Item
