Technical data

8Service
132 Agilent 3000 Series Oscilloscopes User’s Guide
7 Select the Averages item in the Acquire menu until “256” appears.
8 Set the channel 1 vertical sensitivity value to 2 mV/div.
9 Set the power supply to +6 mV.
10 Connect the equipment as shown in Figure 54.

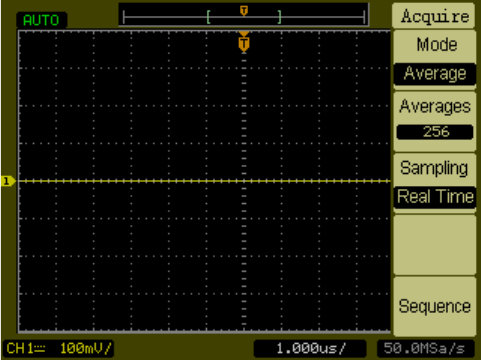

Figure 53 Averages Menu Item
