5 Saving, Recalling, and Printing Data
106 Agilent 3000 Series Oscilloscopes User’s Guide
To save data to CSV format files (on a USB device)
You can save captured data in CSV (comma- separated value) format to an
external USB drive when it is connected to the USB host port.
1 Press Save/Recall
.
2 In the Save/Recall menu, press Storage until “USB” is selected.
3 Press File Type until “CSV” is selected.
4 Press Save.
For information on using the Save menu, see “To save a file to a USB
device” on page 106.
To save a file to a USB device
When saving a waveform, setup, screen BMP, or data CSV file to a USB
device, the Save menu is used to locate and name the file.

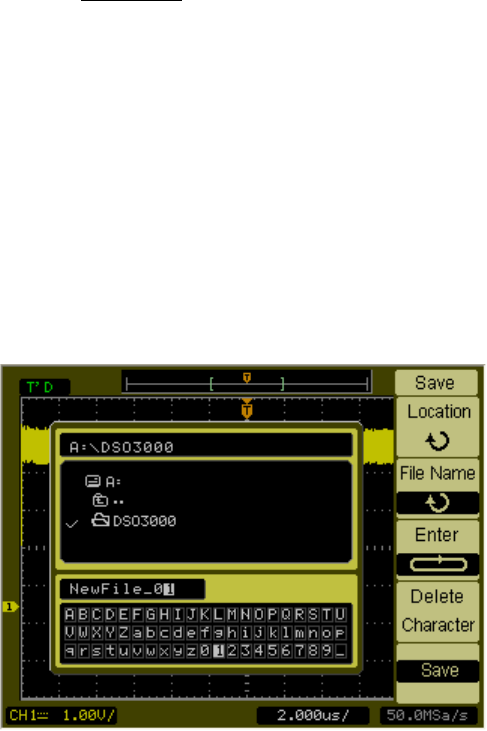

Figure 48 USB Device Save Menu
