5 Saving, Recalling, and Printing Data
104 Agilent 3000 Series Oscilloscopes User’s Guide
Saving to and Recalling from a USB Mass Storage Device
If the oscilloscope has the USB host port module attached to the rear
panel, you can attach a USB mass storage device and:
• Save and recall waveforms and setups.
• Save screen images to BMP format files.
• Save data to CSV format files.
To save/load waveforms to/from a USB device
You can save/load waveforms to an external USB drive when it is
connected to the USB host port.
1 Press Save/Recall
.
2 In the Save/Recall menu, press Storage until “USB” is selected.
3 Press File Type until “Waveform” is selected.
4 Press Save or Load.

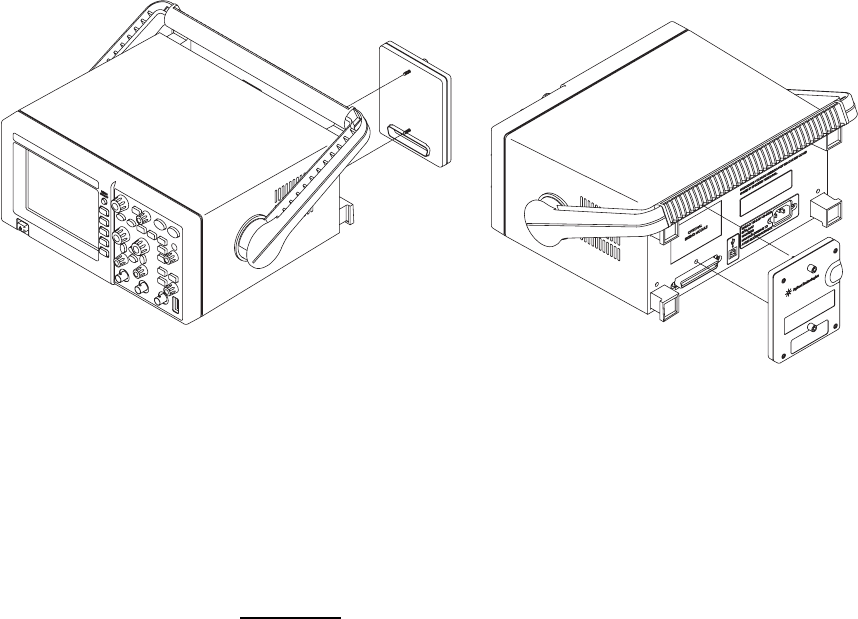

Figure 47 USB Module on Rear Panel
