Chapter 6: Trigger on a Sequence of Events
Run the State Analyzer and View the Listing
Run the State Analyzer and View the Listing
1 Click the Run button to capture the data.
2 Click the Navigate button.
3 Select the slot with the analyzer you are using, and select
Listing... from the pop-up menu.
4 Under SCOUNT, right-click and hold on Hex, then select
Decimal.

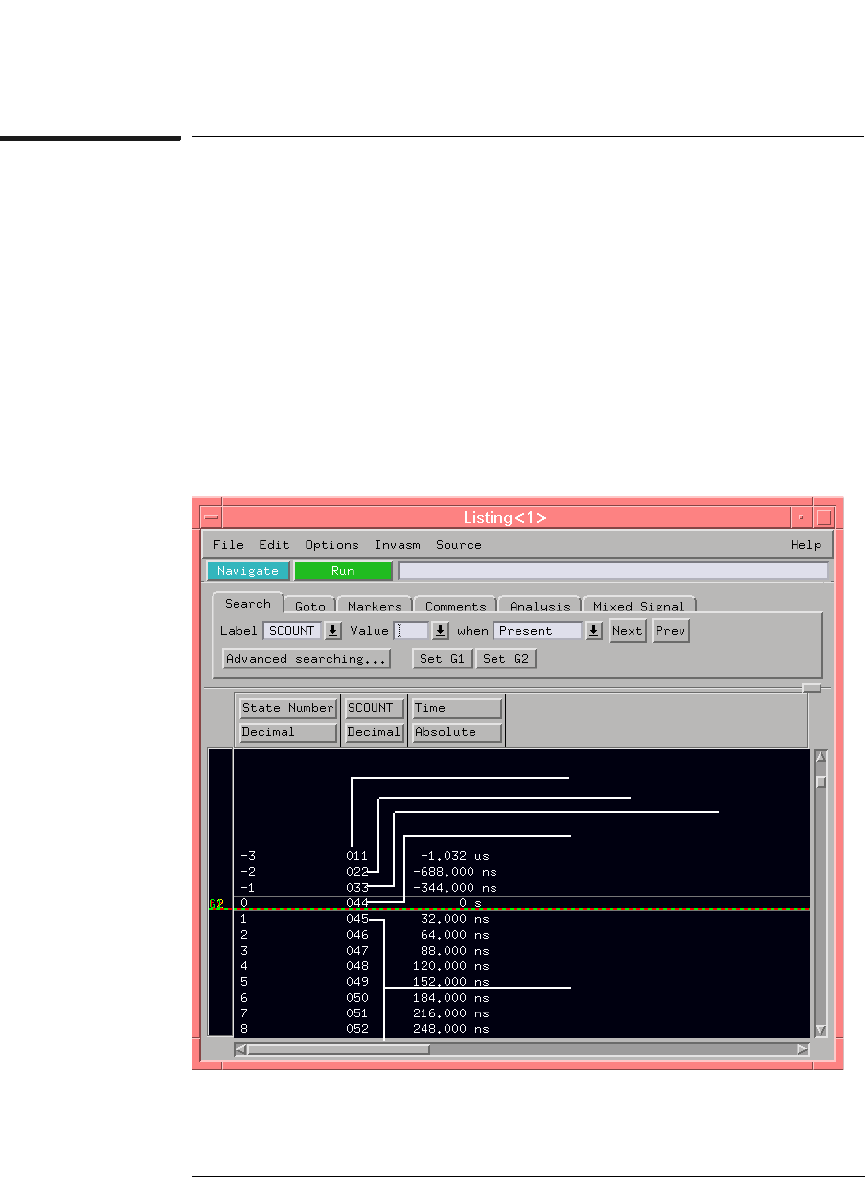

Look for the sequence of events before the trigger point.
ELEVEN
TWENTY2
THIRTY3
Trigger
Store All
