Chapter 6: Trigger on a Sequence of Events
Trigger on a Sequence of Events

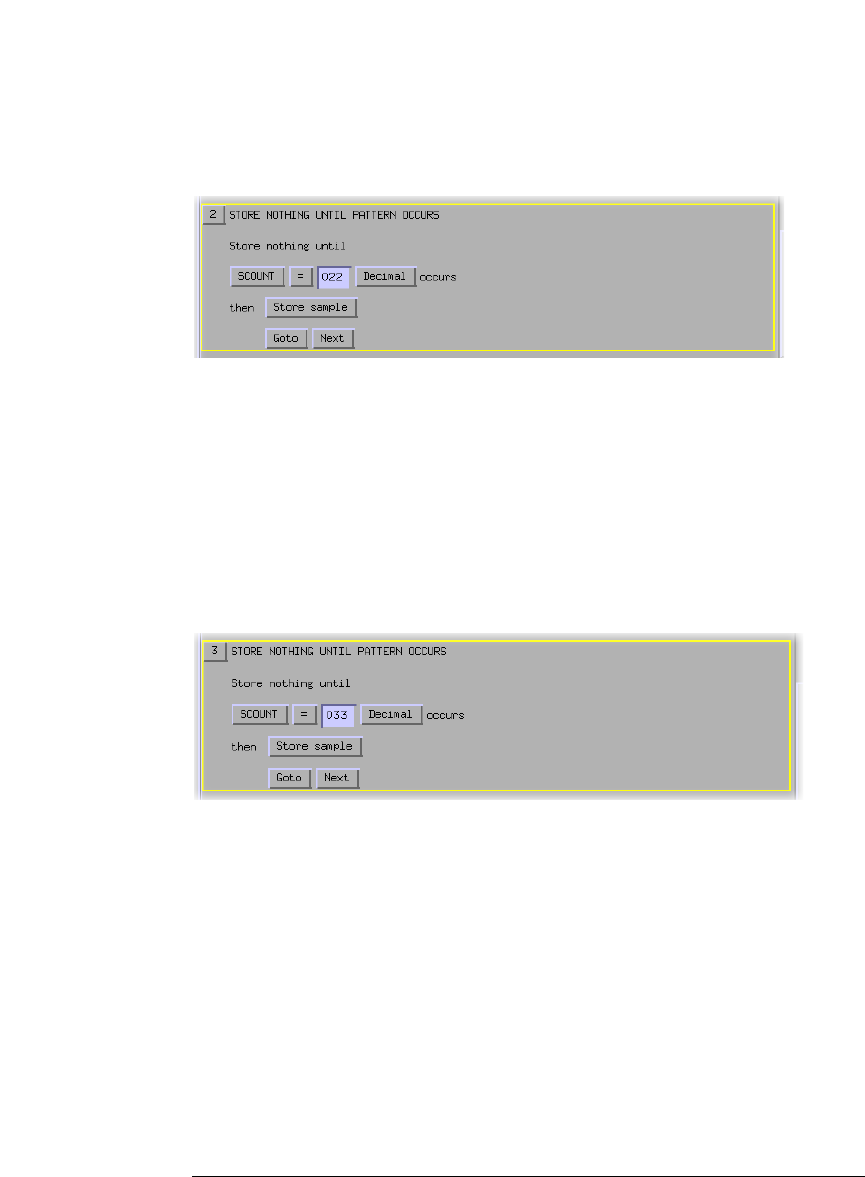

11 Click on Goto and select Insert ACTION, Store, and then Store
sample.
12 On the button bar above Trigger Sequence 1, select Insert after
to insert a Trigger Sequence 3.
13 In the Trigger Sequence 3, click on Hex and select Decimal.
14 In the Trigger Sequence 3, click in the field to the right of
SCOUNT =, and type 033.
15 Click on Goto and select Insert ACTION, Store, and then Store
sample.
16 On the button bar above Trigger Sequence 1, select Insert after
to insert a Trigger Sequence 4.
17 In the Trigger Sequence 4, click on Hex and select Decimal.
18 In the Trigger Sequence 4, click in the field to the right of
SCOUNT =, and type 044.
