Chapter 6: Trigger on a Sequence of Events
Trigger on a Sequence of Events
Trigger on a Sequence of Events
Now you will set up the state analzyer to find a sequence of events,
trigger on the last event, and then store any state. This will take four
sequence levels. The first level will find 11, the second 22, the third 33,
and the fourth level will trigger on the occurrence of 44. The fifth level
will be used to store all states after the trigger point until the analyzer’s
memory is full.
1 Select the Trigger tab.
2 Under the Trigger Functions tab, click on ‘Store nothing until
pattern occurs’.
3 Click Replace to replace the default trigger sequence with the
‘Store nothing until patter occurs’ trigger function.
4 In the Trigger Sequence 1, click on Hex and select Decimal.
5 Click in the field to the right of SCOUNT =, and type 011.

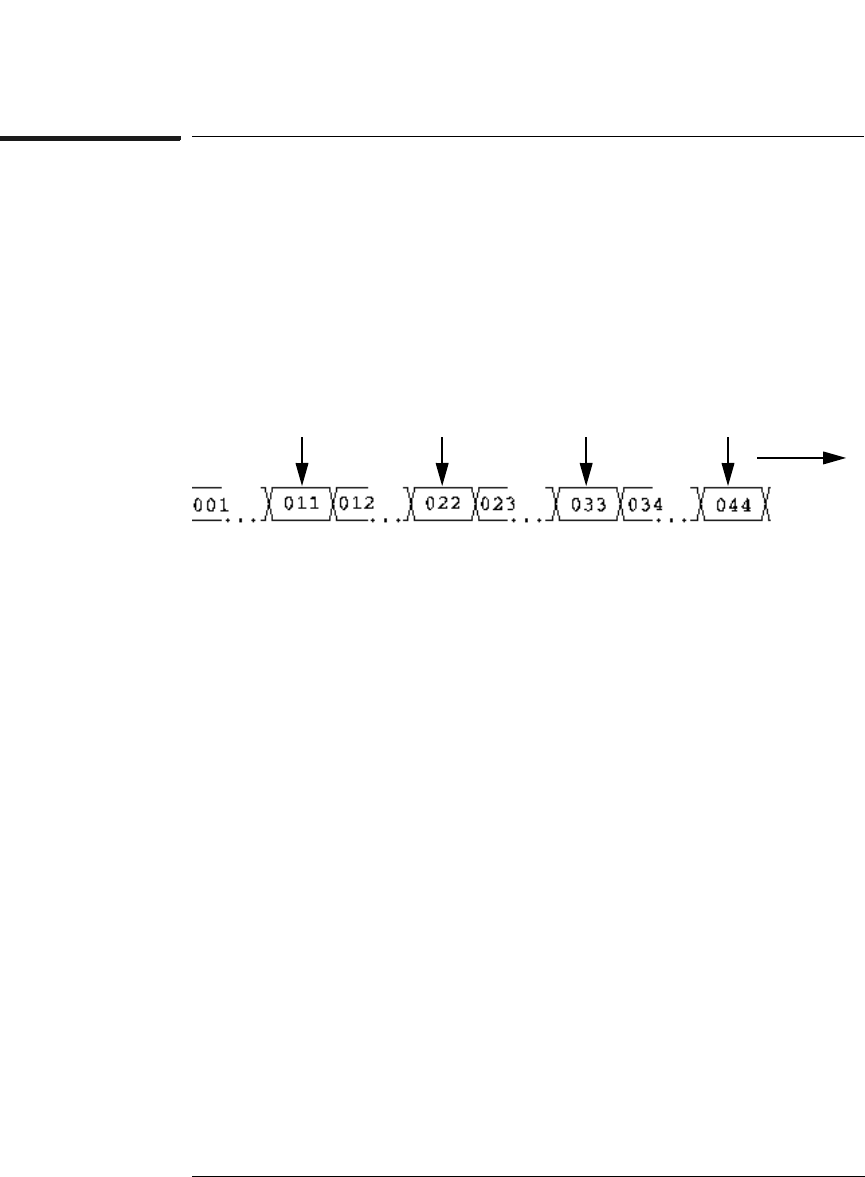

1st find 2nd find 3rd find Trigger Store All
