Chapter 6: Trigger on a Sequence of Events
Set Up the State Analyzer

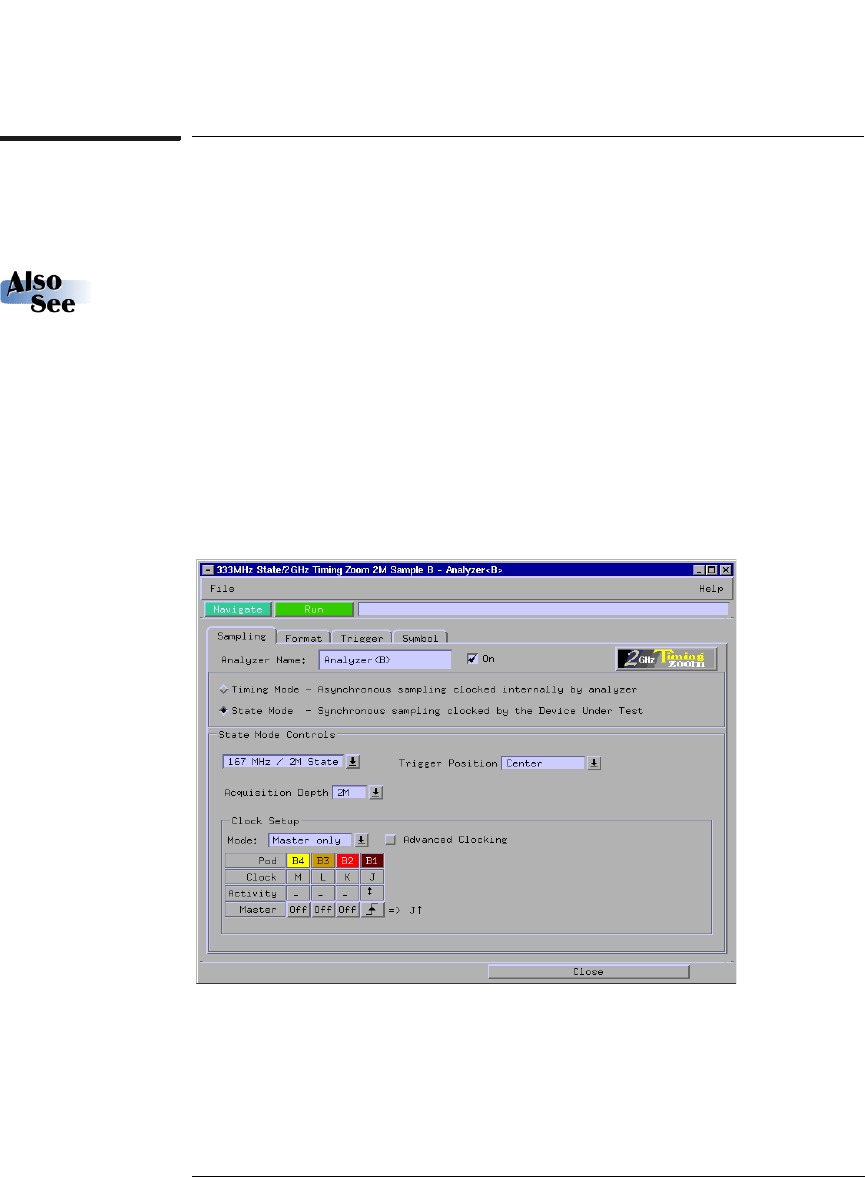

Set Up the State Analyzer
First you must change the analyzer type from timing to state.
Chapter 5 “Introduction to State Analysis: Trigger on an Event”, for
more information on the state analzyer.
1 Click on the analyzer you have connected to the credit card
board.
2 Select Setup... from the pop-up menu to activate that
instrument.
3 Click on the Sampling tab.
4 Select State Mode.
Each pod has one clock channel. The clock channel on pod 1 is J. We
will set J to sample data on the falling edge.
