Trigger on a Sequence of Events

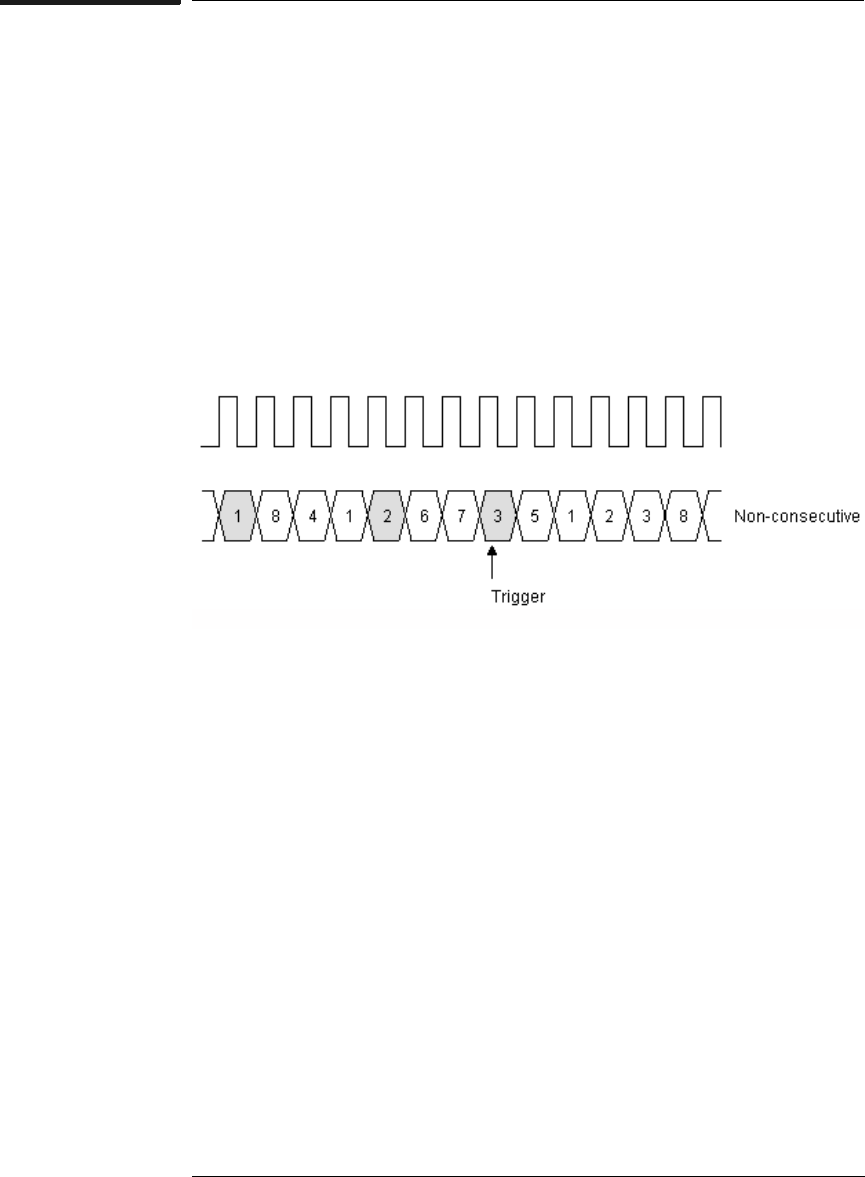

With the state analyzer’s selective storage abilities, you can store only a
portion of the data. In this exercise you will store a non-consecutive
sequence of values before triggering the logic analyzer. This will involve
setting up multiple levels of trigger conditions.
