Chapter 5: Introduction to State Analysis: Trigger on an Event
Run the Analyzer and View the Listing
You set up the analyzer to trigger on 3 and store the range 4-9 and 10
until the analyzer’s memory becomes full. Because the credit card
board counts from 0 to 255 repetitively, there are many occurrences of
“4-9, 10.” Now you will search through the listing for the beginning of
the stored range.
5 Under the Search tab, click in the field to the right of Value,
keep the mouse cursor over the field, and type 004. If the mouse
cursor isn’t in the field, the value can’t be entered.
6 Click on the Next button to find the first occurrence of
RANGE4-9.
7 Click on the Next button a few more times.
Notice the line numbers are increasing and that the trigger point is no
longer in view.

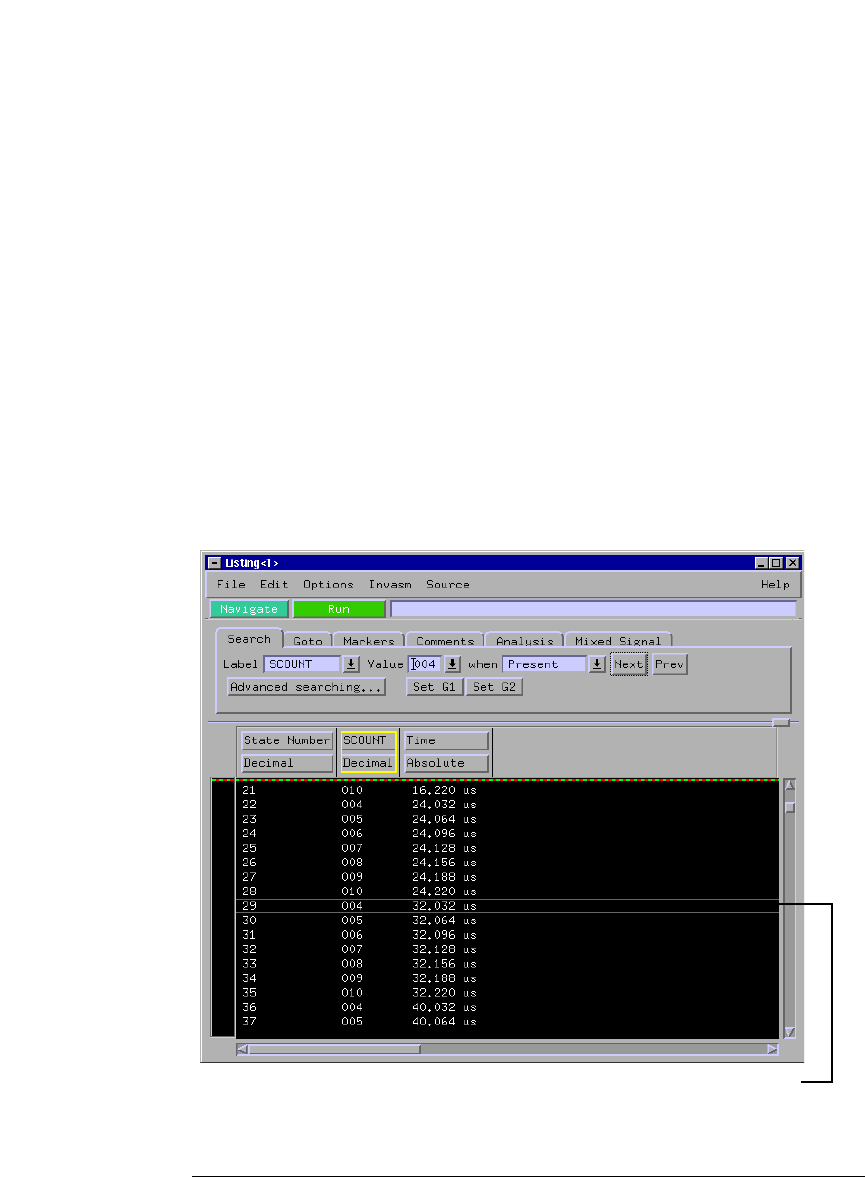

The value 004 that you are searching
the listing for is always displayed inside
these lines.
