Chapter 4: Verify Pulse Widths
Run the Analyzer to Verify Pulse Widths

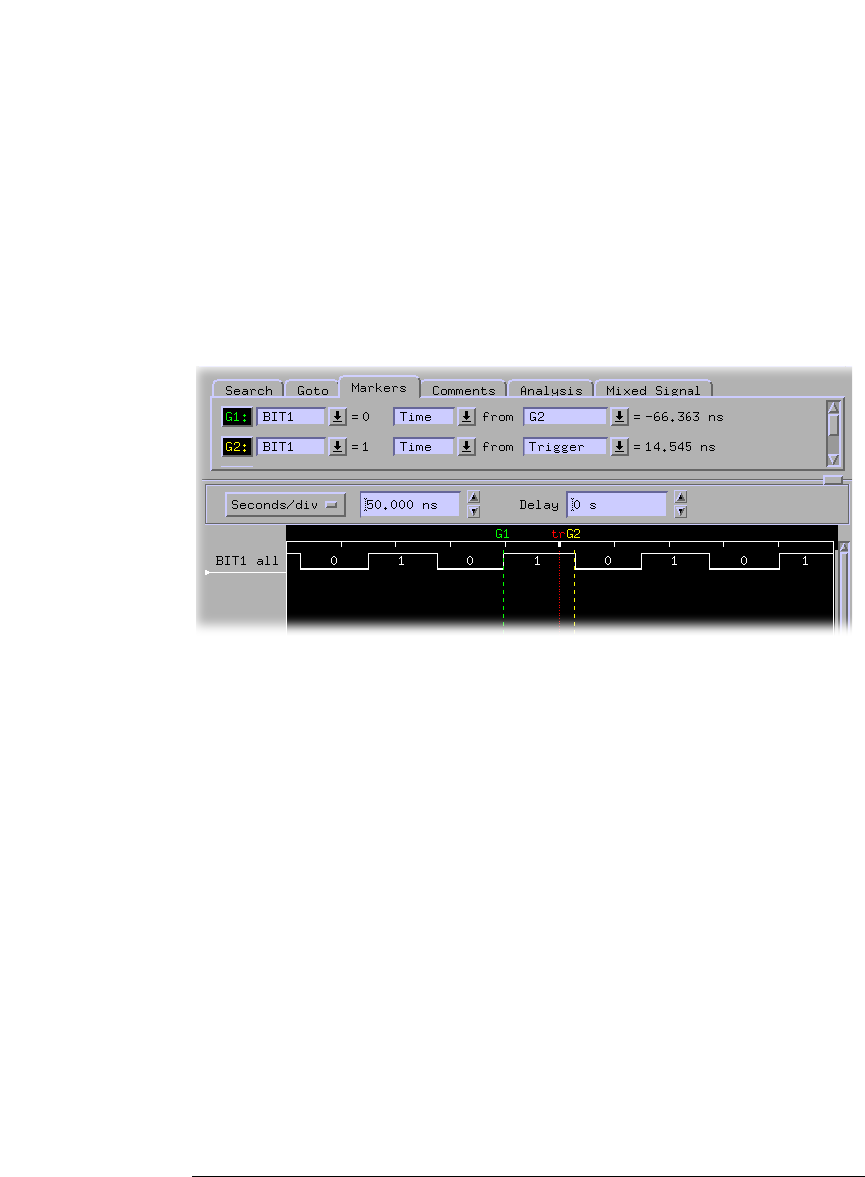

Now you’ll measure how wide the pulse width is using Markers.
5 Click on the Markers tab.
6 To the far right of G1, click on the down arrow after
Time from Trigger, and select G2.
7 Move G1 to the nearest rising edge before the trigger.
8 Move G2 to the nearest falling edge after the trigger.
