Chapter 4: Verify Pulse Widths

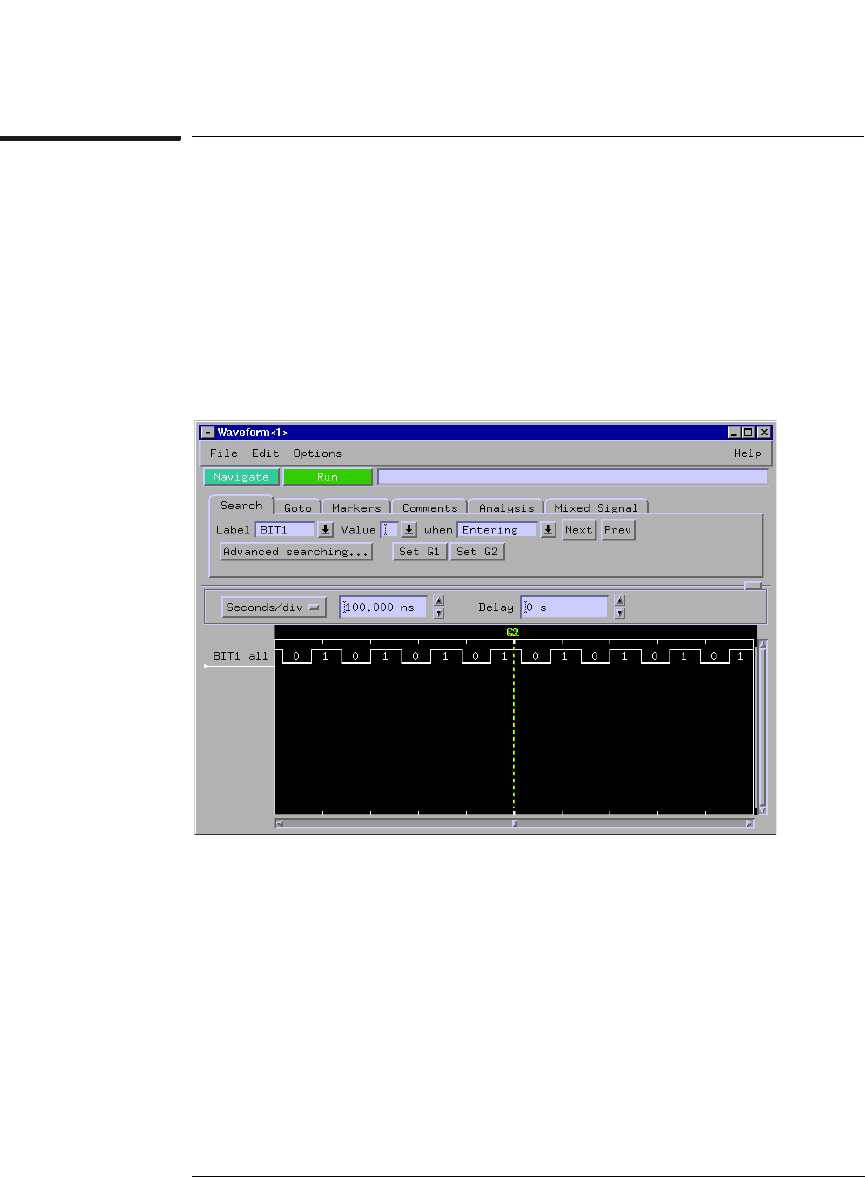

Run the Analyzer to Verify Pulse Widths
Run the Analyzer to Verify Pulse Widths
If the analyzer triggers, it has detected a violation.
1 Click the Run button.
2 Click the Navigate button.
3 Select the slot with the analyzer you are using, and select
Waveform from the pop-up menu.
4 To the right of the Seconds/div field click on the down arrow
until the field is set to 50 ns. This will zoom in on the waveform.
