49
Chapter 4: Verify Pulse Widths
Set Up the Bus Labels
5 Select Individual... from the pop-up menu.

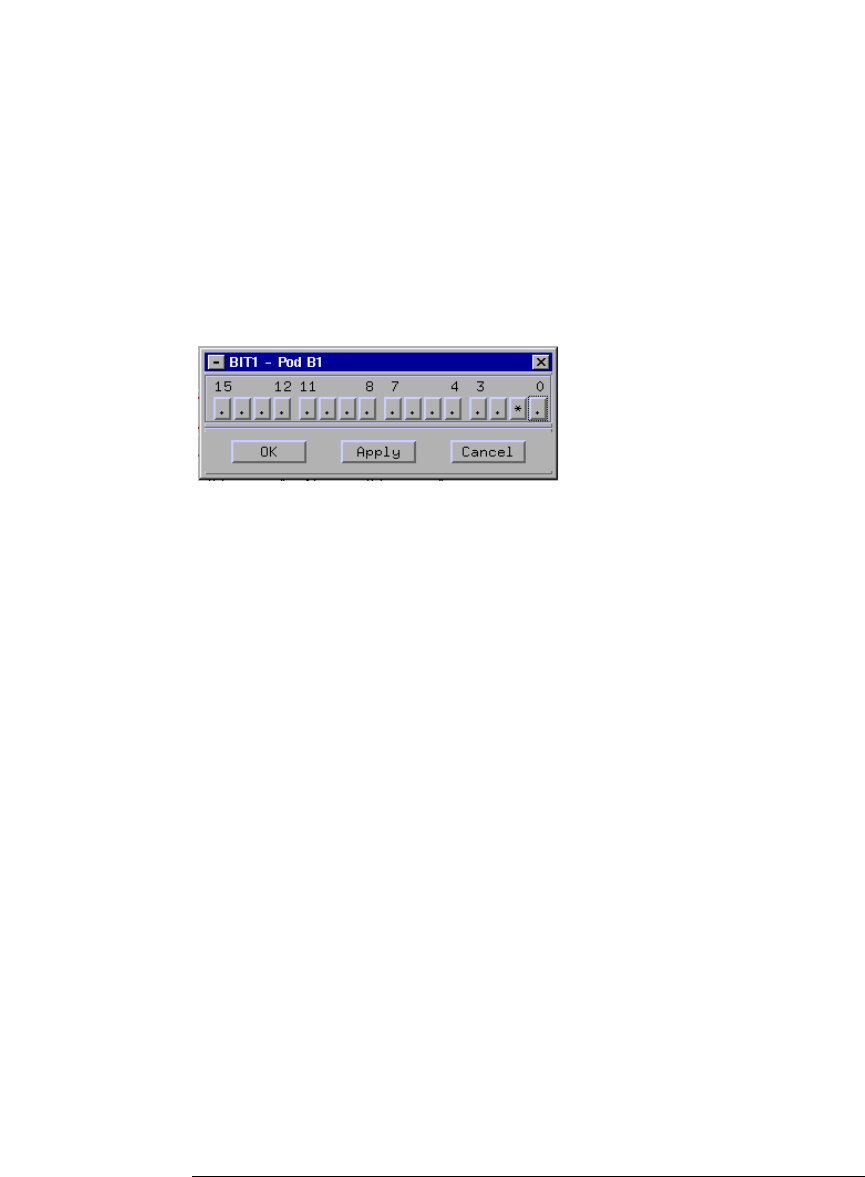

6 If there are asterisks ‘*’ in the BIT1 window, right-click and hold
to select ‘................’ from the pop-up menu.
This changes the bits from being assigned to the label BIT1 to being
unassigned. We only want to assign BIT1.
7 Click on channel one to assign it to BIT1, then click OK.
