Chapter 4: Verify Pulse Widths
Set Up the Bus Labels
Set Up the Bus Labels
1 Select the Format tab.
Now you will organize the data you are capturing by creating a label
and assigning the channels of interest to that label.

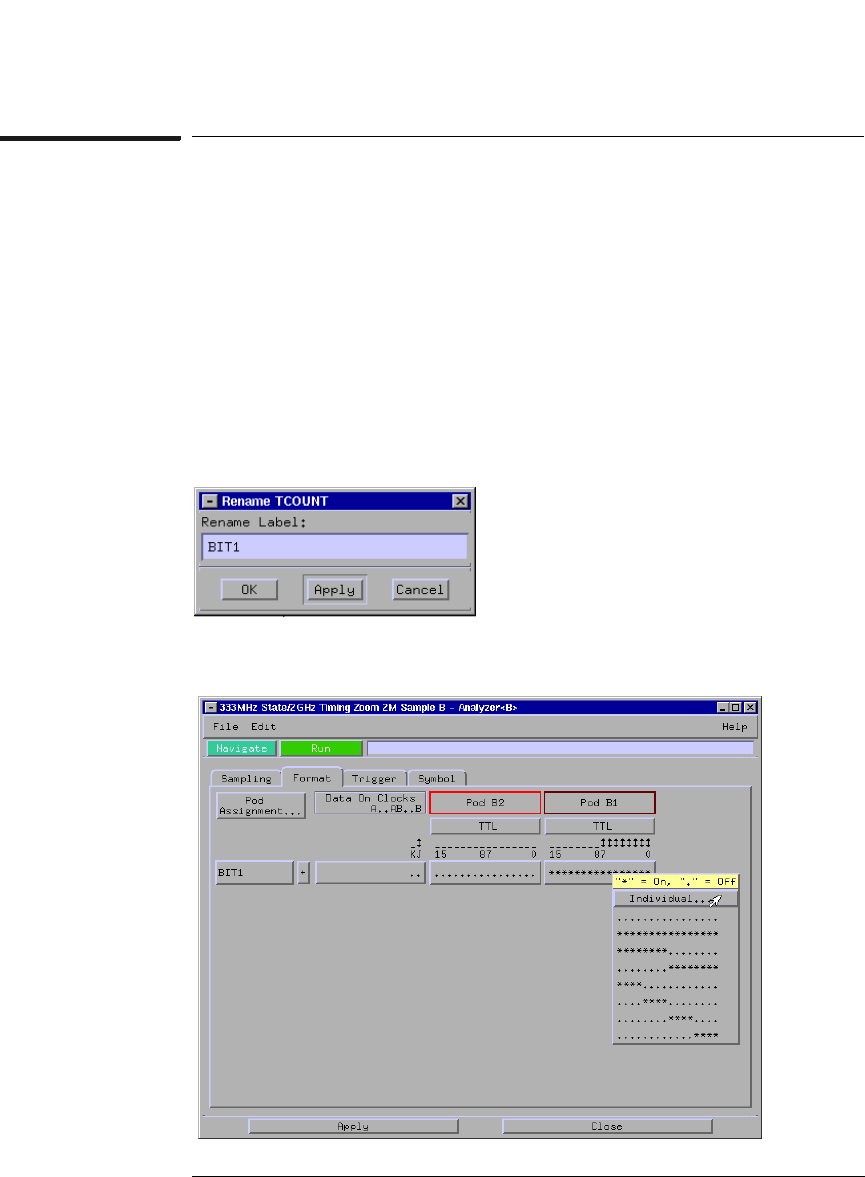

2 Click on Label1, select Rename..., and change the label name to
BIT1.
BIT1 represents the source of the signals.
3 Click OK.
4 To the far right of BIT1, click on the field showing the 16
channels of pod 1.
