Chapter 3: Introduction to Timing Analysis: Trigger on an Edge
Run the Analyzer and View the Data
Run the Analyzer and View the Data
1 Click the Run button to capture the data.
2 Click the Navigate button.
3 Select the slot with the analyzer you are using, and select
Waveform from the pop-up menu.
4 To the right of the Seconds/div field click on the down arrow
until the field is set to 20 ns. This will zoom in on the waveform.

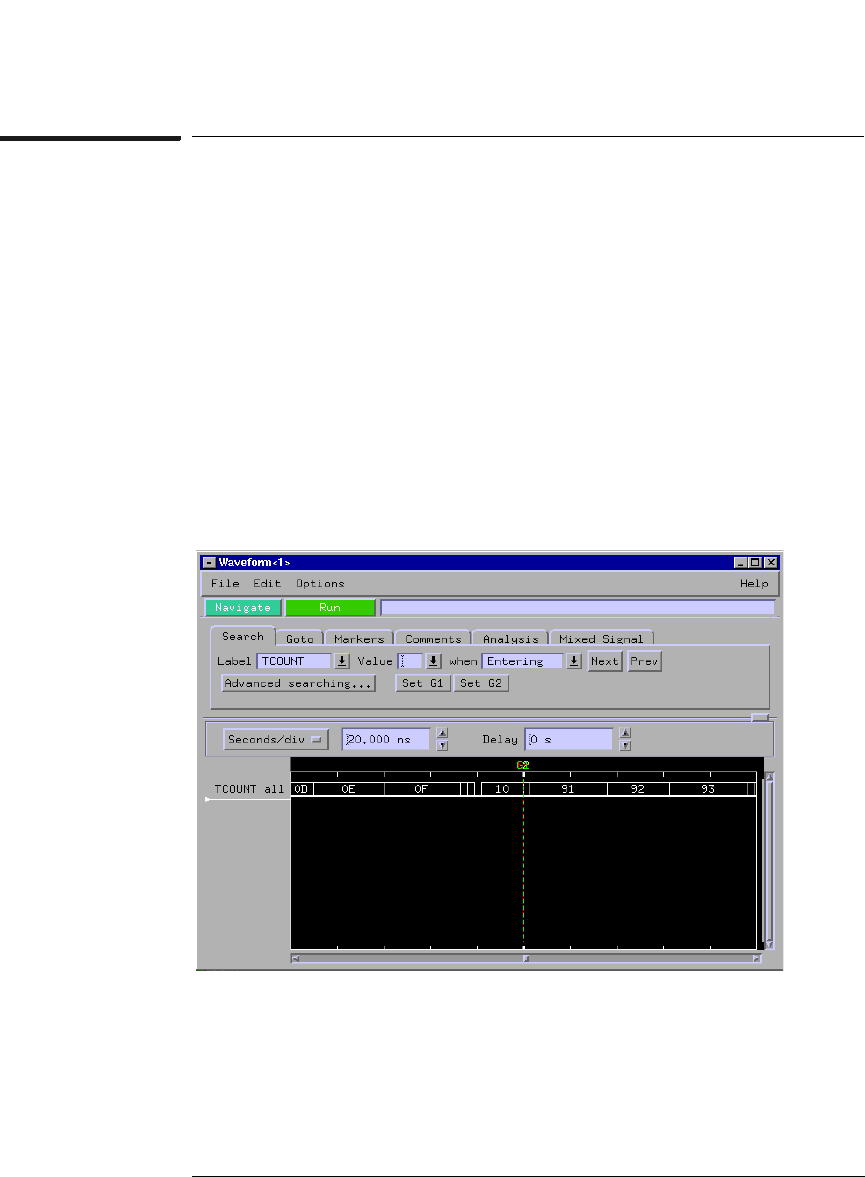

The data you captured is displayed in overlay mode, with the entire bus
of data on one line. This allows you to tell the value of the bus at any
particular moment.
